Observation and analysis of positive leader re-illumination in a 10 m ultra-high voltage transmission line gap under switching impulse voltages

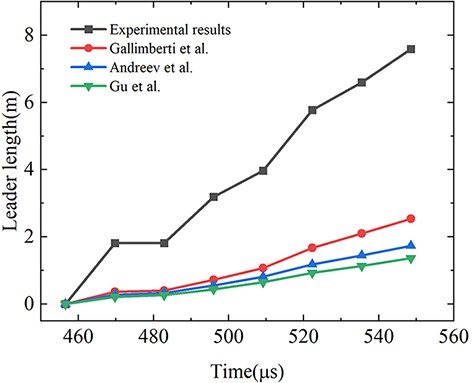

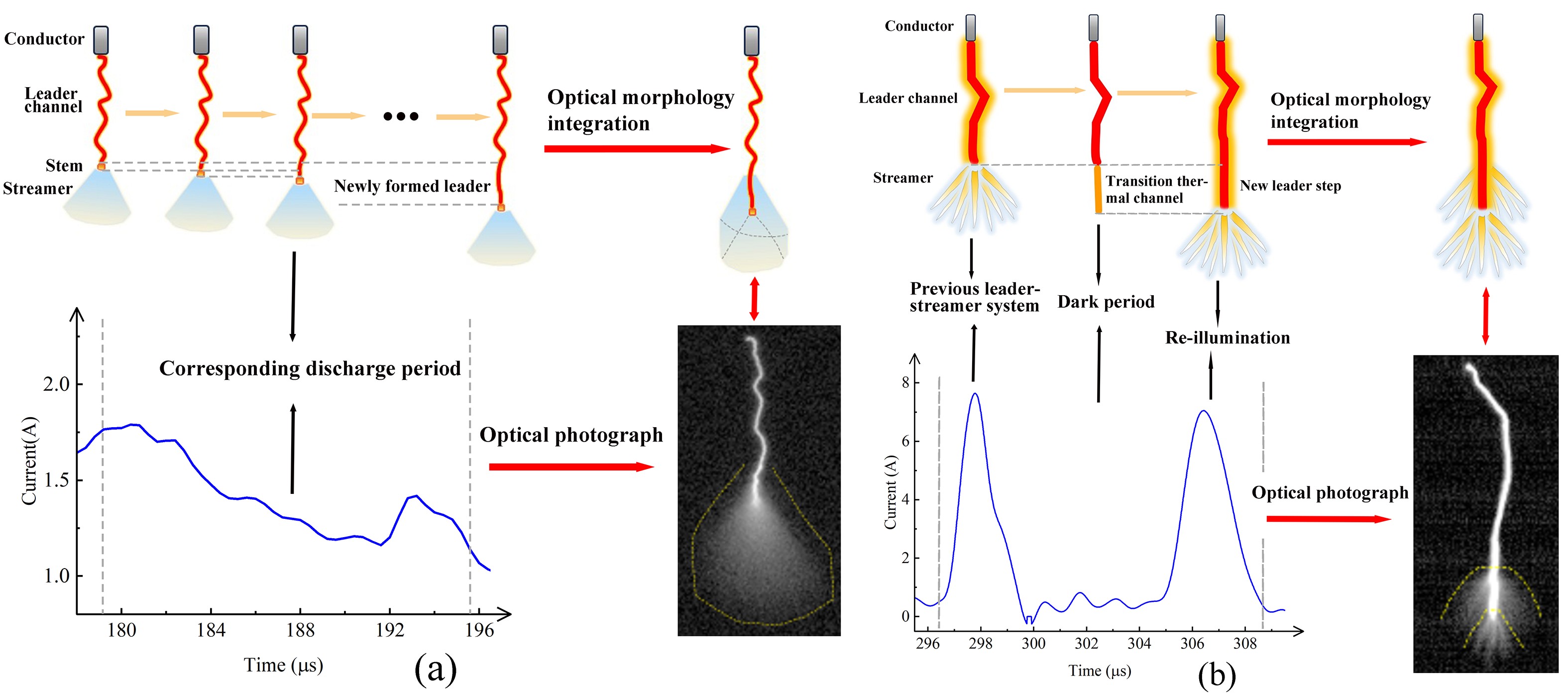

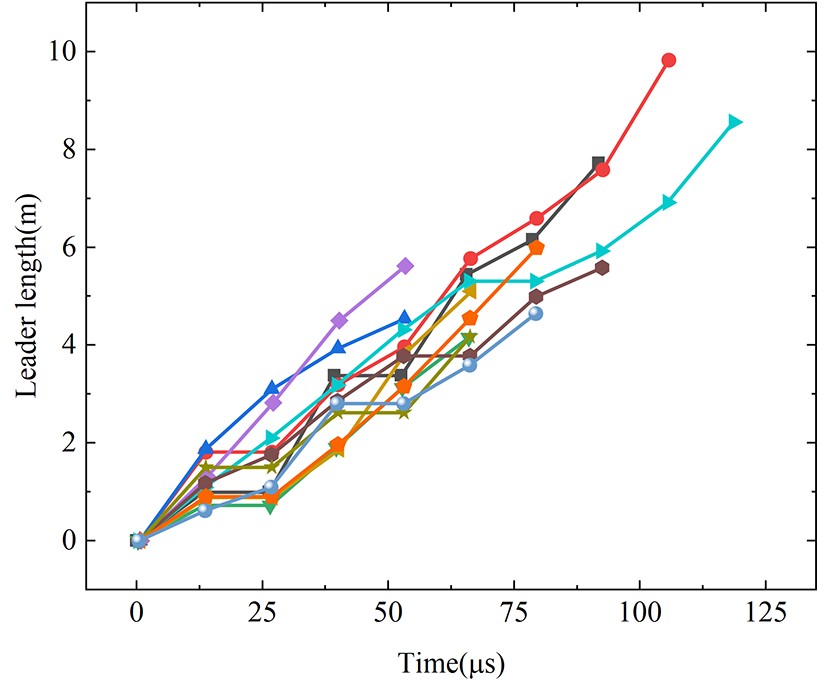

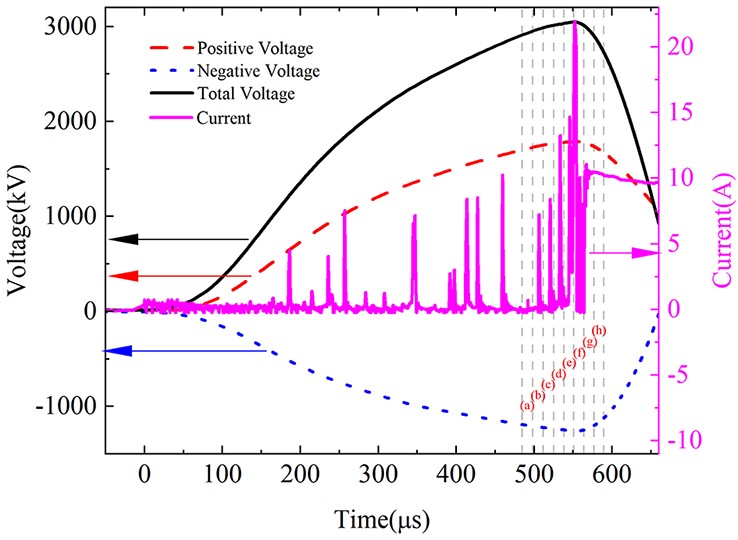

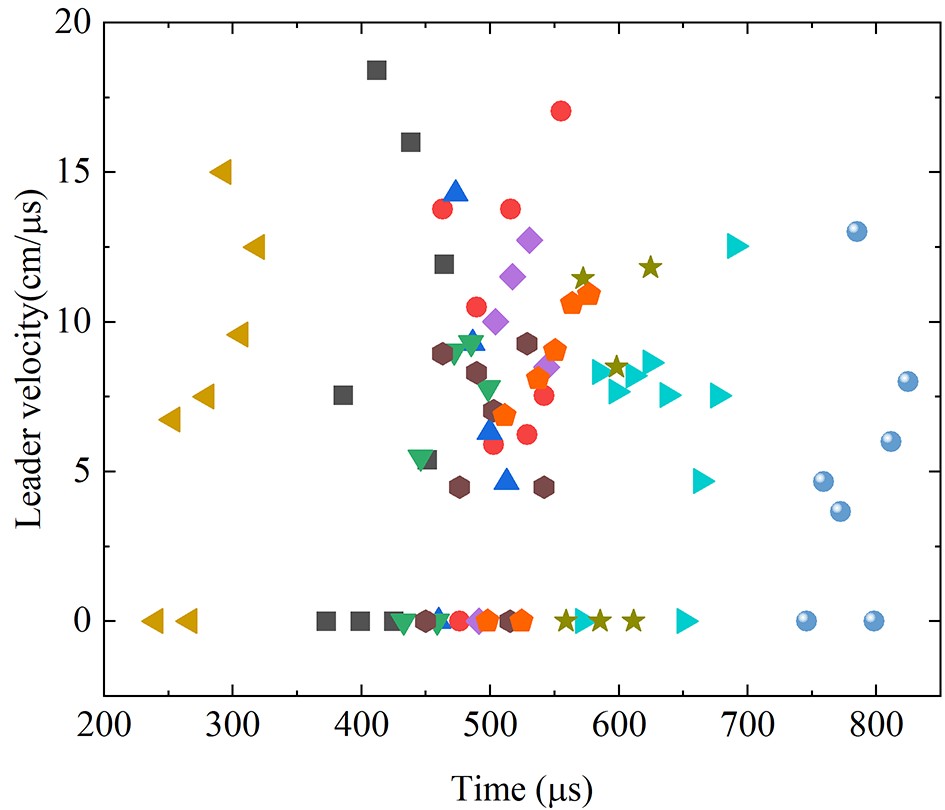

The leader propagation is one of the most important stages in long air gap discharge. The mechanism behind leader re-illumination remains unclear. In high humidity conditions (20.0–30.1 g/m³), we have conducted experiments of long sparks in a 10 m ultra-high voltage (UHV) transmission line gap under switching impulse voltages. The positive leaders predominantly propagate discontinuously, with almost no significantly continuous propagation occurring. The leader channels are intensely luminous and each elongation segment is straight, with streamers resembling the “branch type” which differs from the “diffuse type” streamers at the front of continuous propagation leaders. The distribution of the propagation velocities is highly random (3.7–18.4 cm/μs), and the average velocity (9.2 cm/μs) significantly exceeds that of continuous propagation (1.5–2.0 cm/μs). Analysis suggests that the current-velocity models suitable for continuous leader propagation do not align well with the experimental data in re-illumination mode. Based on the discharge current waveforms and optical images, it is speculated that the newly elongated leader in re-illumination mode does not evolve gradually from the stem (about 1 cm) but rather evolves overall from a thermal channel much longer than stem.
