Screening effect of plasma flow on the resonant magnetic perturbation penetration in tokamaks based on two-fluid model

1.   Introduction

Tearing mode (TM) instability has been extensively investigated by researchers in the area of tokamak plasmas in recent decades [1, 2]. The TM is one kind of current-driven magnetohydrodynamic (MHD) instability commonly followed by magnetic reconnection, which can break up the nested magnetic flux surfaces and generate magnetic islands at the corresponding resonant surface. These magnetic islands can provide a 'seed', called a seed island, for the neoclassical tearing mode (NTM) to grow. NTM, a pressure gradient-driven MHD instability, is linearly stable but can be destabilized by helical perturbations due to the loss of bootstrap current inside the seed island [3]. The onset of NTM is the principal limitation of the plasma temperature in the core region [4], owing to the radial 'shortcut' transport in the produced large magnetic island, and one of the main causes of major disruption [5, 6]. For the sake of economic feasibility, a high fraction of bootstrap current, up to 80%–90%, is required for a future advanced tokamak. Since NTM is a high beta phenomenon, which is proportional to the bootstrap current fraction, the control and suppression of NTM are of great significance for the steady-state operation of tokamak devices [7–9].

Aiming to control the NTM, many research efforts have been dedicated to resonant magnetic perturbation (RMP) [10–16]. RMP has been found to drive additional effects on magnetic islands in tokamak plasmas. Specifically, the RMP can produce an electromagnetic torque at the corresponding resonant surface. Once the electromagnetic torque is sufficiently large to balance the plasma viscosity and inertia torque, the magnetic islands would be compulsorily aligned with the RMP in an identical frequency, called locked mode (LM) [17]. For a static RMP, it can be used to test the maximum tolerance for the residual error field, resulting from the asymmetry of the tokamak device [18]. As for the dynamic RMP, it can be utilized to unlock the magnetic island and maintain a stable toroidal and poloidal rotation [19]. Lately, experimental and numerical results show that the synergetic application of RMP and electron cyclotron current drive (ECCD) is a promising and effective method to control the NTM [20–22]. The RMP can be used as an auxiliary method to lock and locate the phase of the NTM, and then to enhance the accuracy and effectiveness of the ECCD.

In addition to the above application, even if the rotating plasma is originally stable to the NTM, the RMP can drive magnetic reconnection and generate a magnetic island at the resonant surface, called mode penetration [23, 24]. Mode penetration has raised many concerns since its threshold is directly related to the onset of TM/NTM. Based on single-fluid theory, considerable studies have been made in predicting and explaining the threshold of mode penetration for different tokamak devices [12, 25–28] and parameter regimes [29–32]. However, considering the plasma rotation playing a significant role in the screening process of RMP [33], the two-fluid model, retaining the electron diamagnetic drift as well as the E × B flow, is more suitable to account for more complex physics. Recently, in the frame of the two-fluid drift-MHD theory, plenty of research was carried out to investigate the interaction of the RMP and magnetic islands in tokamak plasmas [34–36]. Using a two-fluid model, Hu et al found that the two-fluid effects can give significant modifications to the scaling law of mode penetration for different plasma parameters. Besides, the enduring mystery, a non-zero penetration threshold at zero plasma natural frequency, is explained by the small magnetic island width when penetrated [37, 38]. In the recent investigation, numerical results show that the 2/1 NTM can be suppressed by the 4/2 RMPs with moderate amplitudes if the bi-normal fluid rotation frequency is in the ion diamagnetic drift direction or sufficiently large [39].

Motivated by the above reasons, based on the two-fluid model, the screening effects of two components of plasma flow on mode penetration are investigated in this work. Taking into account the bootstrap current, a mode penetration-like process is found by numerical simulation. Furthermore, it is found that the diamagnetic drift flow has a stabilizing effect on the magnetic islands. An oscillation phenomenon of island width is discovered in the high Lundquist number S and high transport scenario.

The rest of this paper is organized as follows. In section 2, the modeling equations used in this work are introduced. In section 3, numerical results and physical discussions are presented. Finally, the paper is summarized and conclusions are drawn in section 4.

2.   Physical model

The initial value code MDC (MHD@Dalian Code) [40–46] is upgraded to the two fluid versions based on a set of four-field MHD equations [47]. Taking into account the nonlinear evolution of the vorticity U, the poloidal magnetic flux ψ, the plasma pressure p, and the parallel ion velocity v, the normalized equations in the cylindrical geometry (r, θ, z) can be written as

where ϕ and j are, respectively, the electric potential and plasma current density along the axial direction, obtained by the following formulas $U＝{\mathrm{▽}}_{\perp }^2\varphi$ and $j＝-{\mathrm{▽}}_{\perp }^2\psi$ . The equation (1) (vorticity equation) is the perpendicular component (taking e_z · ▽×) of the equation of motion, where ν is the viscosity and τ ＝ T_i/T_e is the ratio of ion to electron temperature. $\delta ＝{\left(2{\mathrm{\Omega }}_{\mathrm{i}}{\tau }_{\mathrm{a}}\right)}^{-1}$ is a gyroradius parameter, where Ω_i ＝ eB₀/m_i is a constant measure of the ion gyrofrequency and ${\tau }_{\mathrm{a}}＝\sqrt{{\mu }_0\rho }a/B_0$ is Alfvén time. Neglecting the electron inertia and Hall effect, equation (2) is obtained by combining the generalized Ohm's law and Faraday's law of electromagnetic induction, where η is the resistivity. $j_{\mathrm{b}}＝-(A\sqrt{\epsilon }/B_{\theta })p\text{'}(r)$ is the bootstrap current [48], where ε ＝ a/R₀ is the inverse aspect ratio, and B_θ is the poloidal magnetic field. A is a constant that can be calculated by a given bootstrap current fraction $f_{\mathrm{b}}＝{\int }_0^a{j}_{\mathrm{b}}r\mathrm{d}r/{\int }_0^a\mathit{jr}\mathrm{d}r$ . Since the isothermal assumption is made here, the evolution of pressure is mainly determined by the particle conservation law. It is basically a transport equation, considering the convective term, parallel and perpendicular heat transport. By including the effect of resistive diffusion and the parallel ion flow, equation (3) is the final energy transport equation for two-fluid plasma. ${\beta }_{\mathrm{e}}＝2{\mu }_0{n}_0{T}_{\mathrm{e}}/B_0^2$ is the electron plasma beta at the location of the magnetic axis, where T_e is the constant electron temperature. χ_|| and χ_⊥ are the parallel and perpendicular transport coefficients, respectively. The equation(4) is the parallel component of the equation of motion by taking the dot product of the equation with B, where μ is the diffusion coefficient of parallel ion velocity. This model can reduce to the high-beta reduced MHD equations of Strauss [49], by giving the limit δ → 0, β_e → 0. New physics appears by introducing the two factors δ, measuring the finite Larmor radius (FLR) effects, and β_e, measuring the compressibility. If one has δ → 0 and T_i ＝ T_e, but non-zero β_e, the model reduces to the compressible reduced MHD (CRMHD) equations [50].

The length l, time t, and velocity v are normalized by the minor radius a, Alfvén time τ_a and Alfvén speed $v_{\mathrm{a}}＝B_0/\sqrt{{\mu }_0\rho }$ , respectively. The poloidal magnetic flux ψ, electric potential ϕ and plasma pressure p are normalized by aB₀, aB₀ v_a and the pressure at the magnetic axis, respectively. The normalization of the diffusion coefficients is as follows, η, ν, μ, χ_||, χ_⊥ are normalized by μ₀ a ²/τ_a, a ²/τ_a, a ²/τ_a, a ²/τ_a, a ²/τ_a, respectively. The Poisson brackets in equations (1)–(4) are defined as

Each variable f(r, θ, z, t) in equations (1)–(4) can be written in the form $f＝f_0(r)+\tilde{f}(r,\theta ,z,t)$ with f₀ and $\tilde{f}$ being the time-independent initial profile and the time-dependent perturbation, respectively. By applying the periodic boundary conditions in the poloidal and axial directions, the perturbed fields can be Fourier-transformed as

with R₀ being the major radius of the tokamak, m and n being the poloidal and toroidal mode number, respectively.

The effect of RMP with m/n is taken into account by the boundary condition

In this way, the perturbed radial magnetic field at the plasma boundary over the toroidal magnetic field could be calculated by δB_r /B₀ ＝ amψ_a. It should be pointed out that, in a real tokamak, the toroidal rotation is prevailing and much stronger than the poloidal one, whereas only the poloidal rotation is considered in this work. Considering the fact that the electromagnetic force exerted in the poloidal direction is (n/m)(r_s/R) times smaller than that in the toroidal direction, where r_s is the radial location of the resonant surface, and the speed in the toroidal direction should be (m/n)(R/r_s) times larger than the poloidal one for having an equivalent rotation frequency, the locking threshold in the toroidal direction can, therefore, be estimated by multiplying such a factor ${[(m/n)(R/r_{\mathrm{s}})]}^2$ .

Given the initial profiles of ϕ₀, ψ₀, p₀ and v₀, equations (1)–(4) can be solved simultaneously by our code MDC. The two-step predictor-corrector method is applied in the time advancement. The finite difference method is used in the radial direction and the pseudo-spectral method is employed for the poloidal and the toroidal directions (θ, ζ ＝ − z/R₀).

3.   Simulation results

3.1   Numerical set-up

Considering a low-density ohmically heated tokamak discharge with electron density n_e ≈ 2 × 10¹⁹ m⁻³, toroidal magnetic field B₀ ＝ 2 T and ε ＝ 0.25, this will lead to the Alfvén speed v_a ≈ 6.9 × 10⁶ m s⁻¹ and Alfvén time τ_a ≈ 7.24 × 10⁻⁸ s. The corresponding Alfvén frequency is ω_a ≈ 1.38 × 10⁷ Hz. Otherwise stated, other plasma parameters are set as follows, τ ＝ 1, β_e ＝ 0.01, η ＝ 10⁻⁶, ν ＝ 10⁻⁷, μ ＝ 10⁻⁶, χ_|| ＝ 10 and χ_⊥ ＝ 5 × 10⁻⁶. In the experimental condition, χ_||/χ_⊥ can be 10⁸–10¹⁰. However, in our simulation, this value is a little lower than the realistic one due to computational limitations. The radial mesh number is set as N_r ＝ 2048. The typical time step Δt in the simulations is chosen as 0.001. However, Δt varies from different cases due to numerical stability. In this work, the nonlinear simulations only include single helicity perturbations with higher harmonics (m/n ＝ 3/2, 3 ≤ m ≤ 18), in addition to the changes in the equilibrium quantities (m/n ＝ 0/0 component). To simulate the mode penetration process, a linearly stable equilibrium safety factor q profile and the normalized plasma pressure p profile $p_0(r)＝{\left(1-r^2\right)}^5$ are given in figure 1, with the q ＝ 3/2 resonant surface located at r ＝ 0.402.

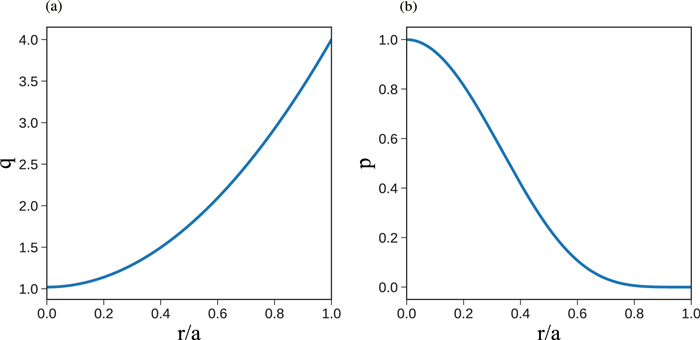

Figure  1.  Safety factor q and pressure p profiles adopted in this work.

DownLoad: Full-Size Img PowerPoint

3.2   Basic verification

To begin with, the role of seed island width on the onset of NTM is verified to ensure the neoclassical current effect is implemented properly. Under real experimental conditions, the seed island comes from a variety of sources, and it may come from different MHD modes, so the seed island width is considered by the initial magnetic perturbation in an arbitrary form of ${\tilde{\psi }}_{t＝0}＝{\psi }_{00}{\left(1-r\right)}^2$ . The nonlinear evolution of magnetic island width for different initial magnetic perturbations is presented in figure 2(a). The solid traces are for bootstrap current fraction f_b ＝ 0.3 (NTM) and dotted one for f_b ＝ 0.0 (TM). For the classical TM, even if a very large seed island width is given, the island width still fades with time, illustrating that the TM in this q profile is linearly stable. Taking the bootstrap current into consideration, it is seen that there is a threshold for the mode to grow, manifesting that the nonlinearly unstable NTM is triggered for a larger seed island width. In experiments, the RMP coils are commonly used to seed a magnetic island. Then the onset of NTM by RMP is tested (${\tilde{\psi }}_{t＝0}＝0$ ). The RMP is turned on from the very beginning with the amplitude of δB_r /B₀ ＝ 3.75 × 10⁻⁵. In figure 2(b), in the presence of RMP, the nonlinear evolution of island width for f_b ＝ 0.3 is shown. After applying the RMP, the originally stable TM can be driven unstable, as the island width grows even without seed island. Then the RMP is turned off at different times when island width grows to a moderate magnitude, to testify if it is the driven reconnection or the onset of NTM. It turns out that, if the RMP is turned off before the island width is sufficiently large, the magnetic island still could not grow spontaneously. It confirms again the existence of the critical island width for triggering the NTM, which is consistent with the theory.

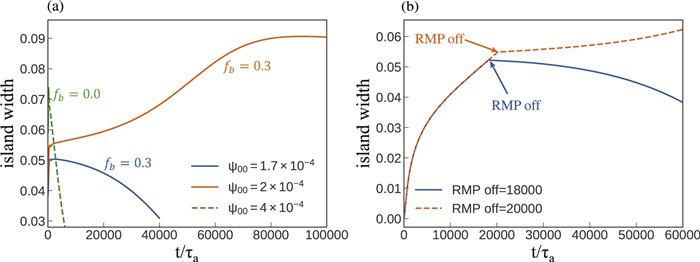

Figure  2.  (a) Nonlinear evolution of the island width for different magnitudes of seed island. The solid traces are for bootstrap current fraction f_b ＝ 0.3 and the dashed trace is for f_b ＝ 0. (b) Nonlinear evolution of island width for different turn-off times of RMP with f_b ＝ 0.3 and δB_r /B₀ ＝ 3.75 × 10⁻⁵.

DownLoad: Full-Size Img PowerPoint

3.3   Effects of electric drift flow

Based on the above results, the effects of different RMP amplitudes are then scanned for f_b ＝ 0.0 and f_b ＝ 0.3 with zero rotation (electric drift ω_E and diamagnetic drift ω_dia are both zero). For f_b ＝ 0.0 (figure 3(a)), the saturated island width is positively related to the RMP amplitude, a typical driven reconnection. However, for f_b ＝ 0.3 (figure 3(b)), a mode penetration like phenomenon can be observed. If the RMP amplitude is relatively small, the magnetic island is going to saturate at a very small magnitude. Once the RMP amplitude is sufficiently large, the final island width would be very large and keep almost the same even further increasing the RMP amplitude. On the other hand, this phenomenon is different from the so-called mode penetration, and we will demonstrate it next.

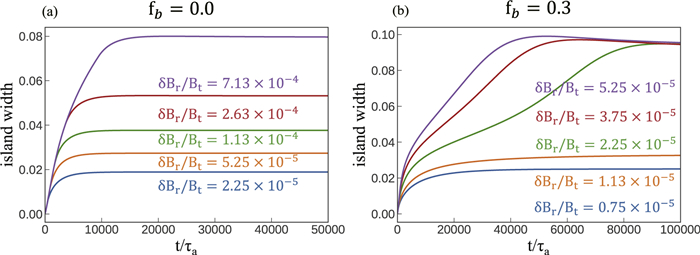

Figure  3.  Temporal evolutions of island width for different RMP amplitudes for bootstrap current fraction f_b ＝ 0 (a) and f_b ＝ 0.3 (b) without plasma rotation.

DownLoad: Full-Size Img PowerPoint

Corresponding to figure 3(b), the saturated magnetic island width is shown as a function of RMP amplitude in figure 4(a). As the RMP amplitude increases, the saturated island width increases slowly first. Once the RMP amplitude exceeds a threshold, there is a jump in the saturated island width. This process can be divided into two parts, i.e. the driven reconnection phase for smaller RMPs and the onset of NTM for large RMPs. Next, including the effect of equilibrium E × B flow, a scan over the RMP amplitude is performed again. The equilibrium E × B flow is considered by a poloidal momentum source Ω_s(r) ＝ 1/r*dϕ₀/dr. Here, δ is set to be zero, so only the E × B flow is considered. For a 6.4 kHz plasma rotation, the saturated island width versus the RMP amplitude is presented in figure 4(b). This is a typical mode penetration case, as the RMP amplitude increases above a threshold, the island width boosts to a large magnitude. There is one main distinction between figures 4(a) and (b), even though they look similar. That is, below the threshold, the island width barely changes for the case with plasma rotation but slowly increases for the case without rotation. The increase regime for the case without rotation is due to the forced reconnection driven by the externally applied RMP. However, the regime below the threshold for the case with rotation is due to the screening effect of the plasma flow. The corresponding eigenmode structures of perturbed poloidal magnetic flux and current density for the case without/with plasma rotation are plotted in figure 5. It can be clearly observed that the RMP is screened inside the resonant surface for the case with rotation, from the fact that the magnetic perturbation is nearly zero for r < r_s. In addition, a strong shielding current is formed at the resonant surface, which is consistent with the results on TEXTOR tokamak [51]. These characteristics are the same as the small locked island phenomenon in [52, 53], suggesting that the small locked island is the complete suppression of the magnetic island by the RMP. Besides, a recent study also shows similar feasibility of magnetic island suppression by RMP at moderate amplitude [54]. For the case without rotation, on the other hand, the m/n ＝ 3/2 component of magnetic perturbation is induced and kept by the 3/2 RMP at the boundary, indicating that mode penetration has already taken place.

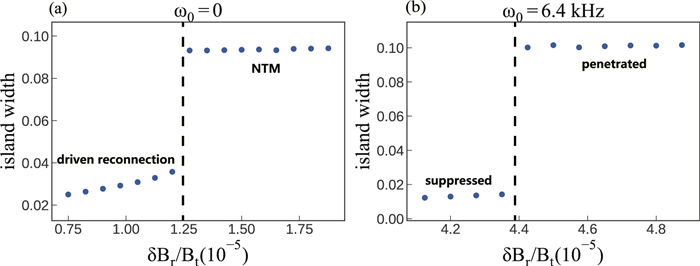

Figure  4.  Island width versus the RMP amplitude for natural frequency ω₀ ＝ 0 (a) and ω₀ ＝ 6.4 kHz (b). The bootstrap current fraction f_b is set as 0.3.

DownLoad: Full-Size Img PowerPoint

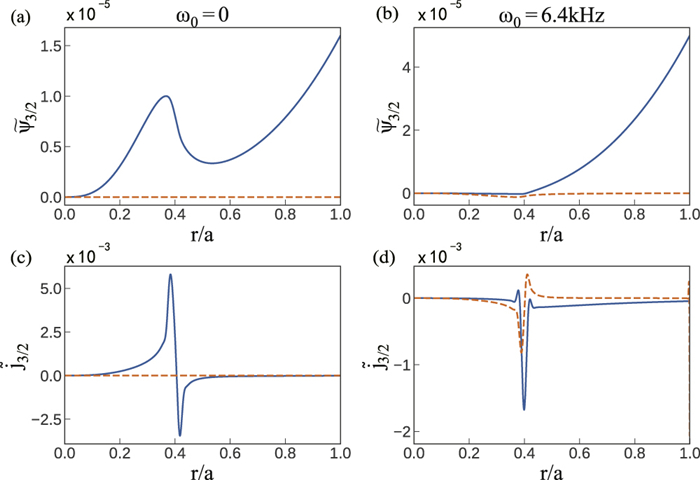

Figure  5.  The typical eigenmode structure of poloidal magnetic flux and current density for m/n ＝ 3/2 component in the regime below the jump of island width. For natural frequency ω₀ ＝ 0 (a) and (c), the magnetic perturbation in the core region is excited by the RMP. For ω₀ ＝ 6.4 kHz (b) and (d), the RMP is kept out from the resonant surface. The solid traces are for the real part and the dashed traces are for the imaginary part.

DownLoad: Full-Size Img PowerPoint

All in all, the above simulation results suggest that, without plasma flow, the penetration threshold for the RMP is zero. Considering the effect of bootstrap current, however, the onset of NTM can lead to a mode penetration-like phenomenon, a driven connection regime plus an NTM regime. As a result, it seems that there is a finite threshold for mode penetration if not carefully distinguished.

3.4   Effects of diamagnetic drift flow

In this subsection, the effects of diamagnetic drift flow on the RMP penetration are numerically studied in comparison with the E × B electric drift flow. The equilibrium E × B flow velocity can be directly obtained by v_E0 ＝ ∂ϕ₀/∂r, and the equilibrium electron diamagnetic flow velocity can be calculated by v_dia0 ＝ − δ∂p₀/∂r, where the subscript 0 is for equilibrium quantities. Therefore, the natural plasma rotation could be obtained by the sum of these two effects. By changing the value of δ, different amplitudes of diamagnetic drift flow can be implemented.

As shown in figure 6, the screening effects of the two types of flow on the RMP penetration are compared. The solid lines are for cases with an equilibrium E × B flow frequency ω_E0 ＝ 6.4 kHz and diamagnetic flow frequency ω_dia0 ＝ 0, while dotted lines for ω_dia0 ＝ 6.4 kHz and ω_E0 ＝ 0. Thus, for both cases, the natural frequency is ω₀ ＝ ω_E0 + ω_dia0 ＝ 6.4 kHz. It makes no difference on the penetration threshold, no matter what kind of flow it is, which means that the penetration threshold only depends on the rotation difference between the resonant surface and the RMP. Corresponding to the two penetrated cases in figure 6, the temporal evolutions of the flow frequencies ω_E, ω_dia, ω_E+ω_dia and the frequency of the phase of the island ω_ph are illustrated in figure 7. It shows a good agreement for the flow frequency and the phase frequency after mode penetration, indicating that the magnetic island and the flow are coupled in accordance with the frozen-in theorem. For the case (ω_E0 ＝ 6.4 kHz, ω_dia0 ＝ 0), the ω_E decreases with time and drops to zero at the moment penetration occurs. For the case (ω_E0 ＝ 0, ω_dia0 ＝ 6.4 kHz), since the ω_dia is a rigid flow effect that is mainly proportional to the pressure gradient, it does not change at the beginning but starts to decrease as the magnetic island grows, where the pressure gradient is flattened. As a consequence, the ω_E will rotate in the opposite direction to cancel the diamagnetic flow.

Figure  6.  Nonlinear evolution of the island width for ω₀ ＝ ω_E0 ＝ 6.4 kHz (solid) and ω₀ ＝ ω_dia0 ＝ 6.4 kHz (dashed).

DownLoad: Full-Size Img PowerPoint

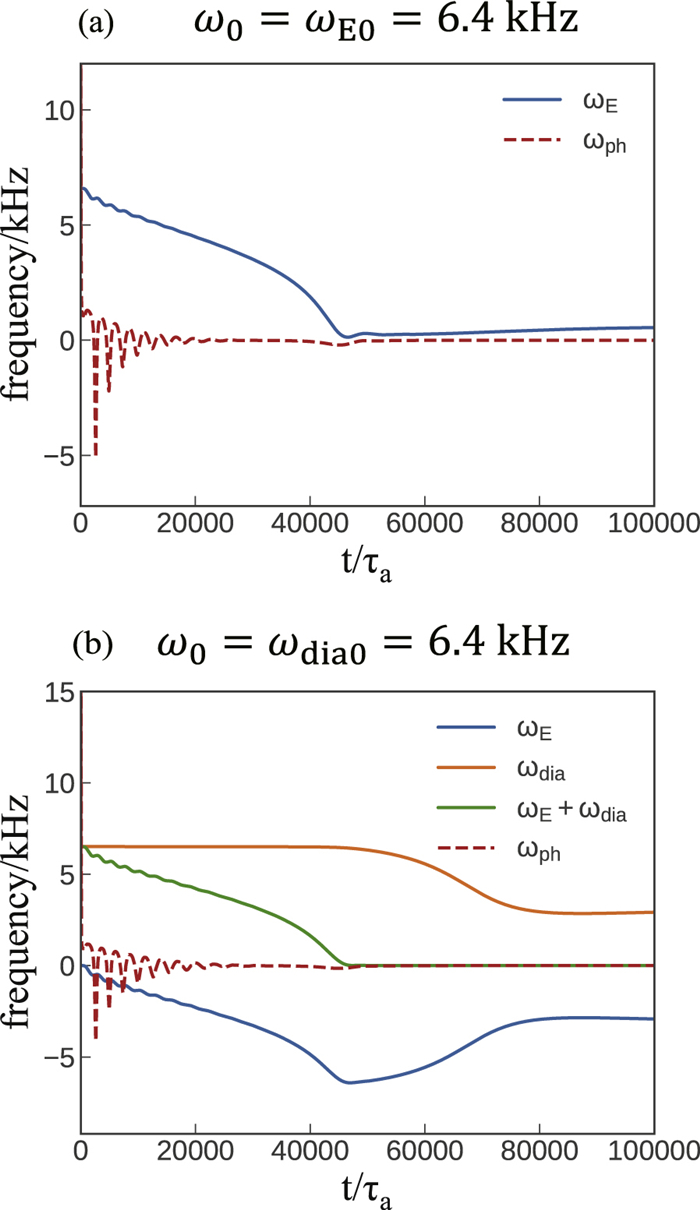

Figure  7.  Temporal evolutions of the phase frequencies ω_ph and different flow frequencies ω_E, ω_dia, and ω_tot ＝ ω_E + ω_dia. The ω_ph is calculated by the partial derivative of the phase of poloidal flux Φ_ψ with respect to time. ω_E and ω_dia are the angular frequencies of electric drift and diamagnetic drift flow, respectively.

DownLoad: Full-Size Img PowerPoint

When it comes to a larger rotation frequency, the situation is somewhat different. Similar to figure 6, the nonlinear evolution of the island width for a larger natural frequency ω₀ ＝ 12.8 kHz is presented in figure 8. It shows again that the penetration threshold is almost the same. However, there are two differences observed. First, the saturated island width is evidently smaller for the case (ω_E0 ＝ 0, ω_dia0 ＝ 12.8 kHz) than that of the case (ω_E0 ＝ 12.8 kHz, ω_dia0 ＝ 0), implying that the diamagnetic flow can drive a stabilizing effect on the magnetic island. Second, an oscillation phenomenon of the magnetic island is discovered after mode penetration. To further analyze this oscillation phenomenon, the island width and flow frequency of the oscillated case in figure 8 are plotted, as shown in figure 9. The periodical oscillation of diamagnetic flow frequency is observed as well in figure 9(b). It should be noted that the oscillation of frequency lags behind the island width a bit, suggesting that the change of island width results in the change of the diamagnetic flow frequency at first. Since the diamagnetic flow is proportional to the pressure gradient, it can be straightforwardly inferred that this phenomenon is related to the change in plasma pressure. To proceed to a further step, the contour plot of the pressure p together with the poloidal magnetic flux ψ is shown in figure 10, corresponding to the four red time points in figure 9. As the magnetic island grows larger (t ＝ 73000 and t ＝ 83200), the pressure gradient ▽_|| p with respect to the magnetic field inside the island becomes larger. For a smaller island width (t ＝ 77000 and t ＝ 88800), in contrast, ▽_|| p is smaller. This modification of the pressure gradient can in return affect the island width by the δ▽_|| p term in equation (2), leading to the above oscillation phenomenon. To make it more clear, the nonlinear evolutions of the island width and the value of ▽_|| p at the resonant surface are plotted in figure 11. It is obviously shown that the island width and pressure gradient exhibit a negative feedback relationship, as discussed above.

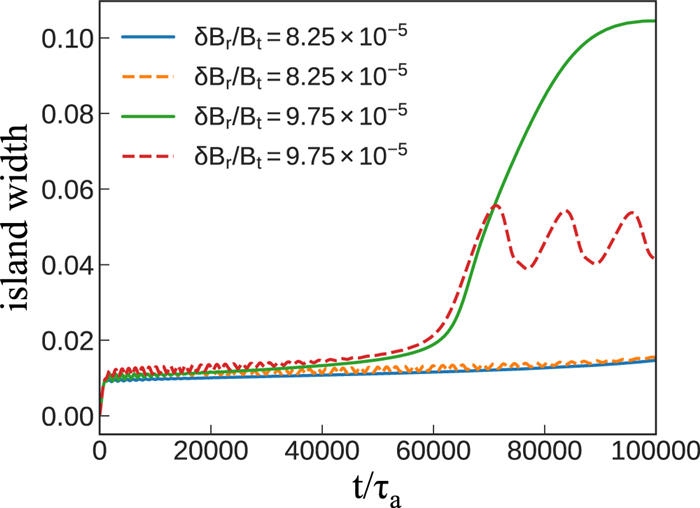

Figure  8.  Nonlinear evolution of the island width for ω₀ ＝ ω_E0 ＝ 12.8 kHz (solid) and ω₀ ＝ ω_dia0 ＝ 12.8 kHz (dashed).

DownLoad: Full-Size Img PowerPoint

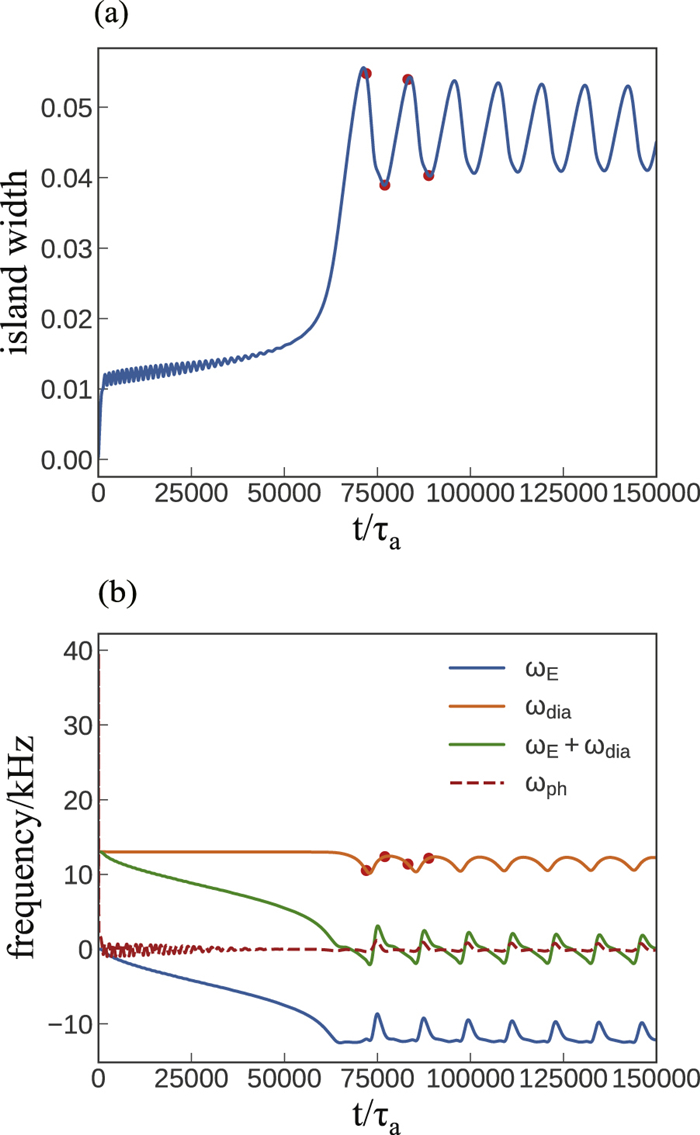

Figure  9.  Temporal evolution of the island width and various frequencies for the oscillated case (ω₀ ＝ ω_dia0 ＝ 12.8 kHz, δB_r /B₀ ＝ 9.75 × 10⁻⁵) in figure 8. Oscillation of ω_dia is observed after mode penetration. Four time points t ＝ 73000, t ＝ 77000, t ＝ 83200, and t ＝ 88800 are marked by the red circles.

DownLoad: Full-Size Img PowerPoint

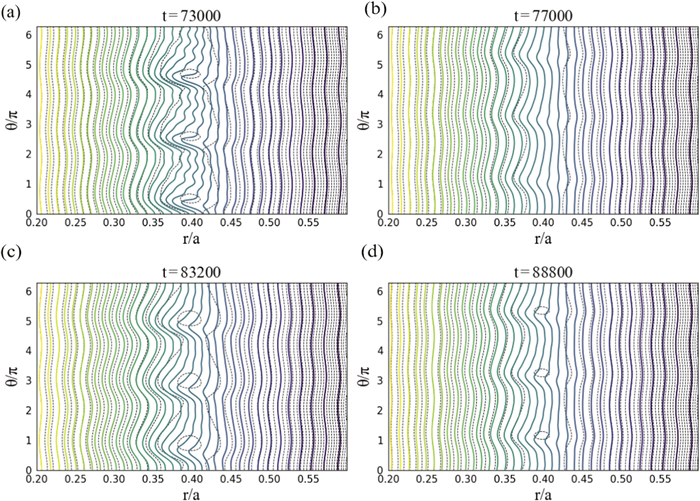

Figure  10.  Contour plot of the plasma pressure p (solid lines) and poloidal flux ψ (dotted lines), corresponding to the four red time points marked in figure 9.

DownLoad: Full-Size Img PowerPoint

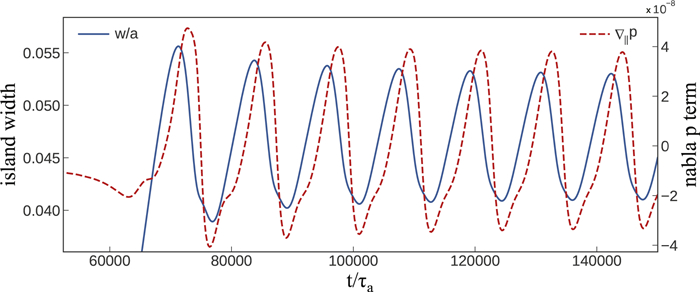

Figure  11.  Nonlinear evolution of the island width (solid) and the value of ▽_|| p (dotted) at the resonant surface after mode penetration.

DownLoad: Full-Size Img PowerPoint

In order to further verify our conjecture, the effect of resistivity η is then investigated. For a larger η, it turns out that the oscillation phenomenon disappears and the island width recovers as illustrated in figure 12(a). It can be easily understood through equation (2). Since η is a diffusive term, the effect of δ▽_|| p term, stabilizing the island and causing the oscillation, can be diffused to some extent with the increasing η, in much the same way as viscosity ν in the vorticity equation stabilizing the oscillation of rotation. In other words, the oscillation phenomenon is a result of the competition of the two terms δ▽_|| p and η(j − j_b). For the same reason, a smaller bootstrap current fraction f_b can remove the oscillation by making the η(j − j_b) term larger, shown in figure 12(b). As the ratio of parallel to perpendicular transport coefficients, χ_||/χ_⊥ is crucial to the process of pressure evolution, the effects of different χ_|| and χ_⊥ values are studied. In figures 12(c) and (d), the temporal evolution of the island width is plotted for different χ_|| and χ_⊥. The results are intuitive, i.e. a smaller χ_|| or larger χ_⊥ can eliminate the oscillation. This is because a smaller χ_||/χ_⊥ can lower the energy transport level along the magnetic field lines, which would reduce the variation of the δ▽_|| p term when the size of the magnetic island changes.

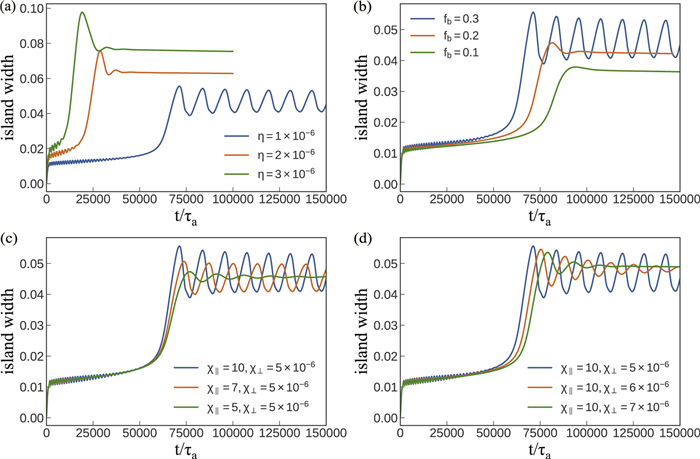

Figure  12.  Comparison of island width versus time for different (a) resistivity η, (b) bootstrap current fraction f_b, (c) parallel transport coefficient χ_|| and (d) perpendicular transport coefficient χ_⊥.

DownLoad: Full-Size Img PowerPoint

4.   Summary and discussion

The initial value code MDC (MHD@Dalian Code) is upgraded with the capability of two-fluid effects. On the basis of the well-known four-field equations [47], the bootstrap current, parallel and perpendicular transport effects are additionally included. In this work, the numerical simulation of the mode penetration is conducted based on the two-fluid model. The main points can be summarized as follows.

(ⅰ) The threshold of mode penetration at zero rotation is explored. It is found that for the classical TM (f_b ＝ 0), there is no threshold for mode penetration. In this circumstance, the behavior of the magnetic island is dominated by driven reconnection, i.e. the saturated island width is positively related to the amplitude of RMP. For the NTM (f_b ≠ 0), on the other hand, a mode penetration-like phenomenon is observed consisting of a driven reconnection regime and an NTM regime. This phenomenon is different from the so-called mode penetration but can be mistakenly defined as mode penetration if not carefully distinguished. It may provide a possible explanation for the finite mode penetration threshold at zero rotation detected in experiments. The polarization drift, which is an important physics for NTM besides the pressure transport model, is not included in this work. Its role will be investigated in a future study.

(ⅱ) The effect of diamagnetic drift flow on mode penetration is numerically studied. For a smaller diamagnetic drift flow, numerical results show that its influence is almost the same as the electric drift flow with comparable frequency. However, for a larger diamagnetic drift flow, it can drive a stabilizing effect on the magnetic island through the δ▽_|| p term in equation (2). Besides, an oscillation phenomenon of the island width is observed. This oscillation is linked with the change of pressure during the variation of island width. It tends to appear in the high Lundquist number S and high χ_||/χ_⊥ regime, where the parameter of the advanced tokamak exactly lies.
