Detection of Al, Mg, Ca, and Zn in copper slag by LIBS combined with calibration curve and PLSR methods

1.   Introduction

In copper pyrometallurgy, copper slag is a vital product, and accurate control of the smelting process necessitates timely updates regarding the slag viscosity. This is because viscosity governs both heat and quality transfer in the slag and has a direct relationship with the loss of valuable elements and the durability of the smelting furnace. Al, Mg, and Ca content in the slag directly affects its viscosity, while Zn is a crucial element in the smelting process. Therefore, a precise and efficient determination of their respective concentrations is of great significance in achieving precise control of production processes.

Currently, chemical analysis methods such as X-ray fluorescence analysis (XRF) [1, 2] and inductively coupled plasma emission spectroscopy (ICP) [3] are commonly employed for determining the composition of copper slag. However, these methods require meticulous sampling and preparation procedures, resulting in long analysis time, which is incapable of meeting the demands of precise process control for the rapid analysis of copper slag composition. On the other hand, Laser-Induced Breakdown Spectroscopy (LIBS) is an atomic emission spectroscopy technology that enables quantitative or qualitative analysis of sample elemental composition. With its remote non-contact detection capabilities, absence of any complex sample pretreatment requirements, rapid analysis speed, simultaneous analysis of multiple elements, lack of radiation, and robust adaptability to harsh environments [4], it has been extensively applied in various fields [5] such as environmental monitoring [6], resource exploration [7‒9], metal smelting [10], and agricultural production [11].

In metal smelting, LIBS technology is mostly used for detecting the composition of alloys, stainless steel, steel slag, and other components [12‒18]. It is seldom used for detecting the composition of copper slag. Only François et al studied the feasibility of analyzing the slag composition in secondary copper production [19]. Furthermore, traditional LIBS systems have short detection distances, making them unsuitable for detecting high-temperature melt composition in the smelting process. Yoon et al used LIBS and partial least squares regression (PLSR) method to analyze heavy metals in sediments [20]. Kashiwakura and Wagatsuma used LIBS and PLSR method to analyze austenitic stainless steel [21]. Brinkmann et al used laser-induced breakdown spectroscopy combined with PLSR method to determine copper in ores [22]. These studies all indicated that LIBS combined with PLSR method is a good approach for component analysis. To address this issue, we utilized a remote LIBS system to detect the concentrations of Al, Mg, Ca, and Zn in copper slag. The results were subsequently analyzed and compared using the calibration curve and the PLSR methods. Implementing the LIBS system has established a viable solution for the online and rapid detection of molten slag composition for the copper smelting process.

2.   Experiment

2.1   Experimental instrument

The rendering of the schematic diagram of the LIBS system is shown in figure 1. A nanosecond Q-switched Nd: YAG laser (Quantel Ultra100) was employed at 1064 nm with a pulse energy of 100 mJ, a repetition rate of 10 Hz and a pulse duration of 7 ns. The pulse laser emitted by the laser is reflected by the dielectric film mirror (Beamsplitter, R > 96% at 1064 nm and T > 90 at 250‒700 nm) and directly incident onto the convex mirror (Mirror1, R > 90% at 250‒1100 nm) through a small hole in the center of the concave mirror (Mirror2, R > 90% at 250‒1100 nm). It is subsequently reflected by the convex mirror to the concave mirror and focused on the sample in front to excite the plasma. The signal light emitted by the plasma returns along the original optical path focuses through the dielectric film mirror and is transmitted to the spectrometer through collecting lens and optical fiber for spectral collection. A spectrometer (AvaSpec-ULS2048CL-EVO, Avantes) with three channel was used to detect the spectral wavelength regions of 270–610 nm with a delay time of 1.28 μs and the integration time of 1.05 ms, respectively. The focal length (detection distance) of the system can be changed by adjusting the position of the convex reflector, and the detection distance of this system is from 1.5 to 3.6 m. The details of the experimental system were described in our previous work [23, 24]. For this experiment, a detection distance of 2.5 m was applied.

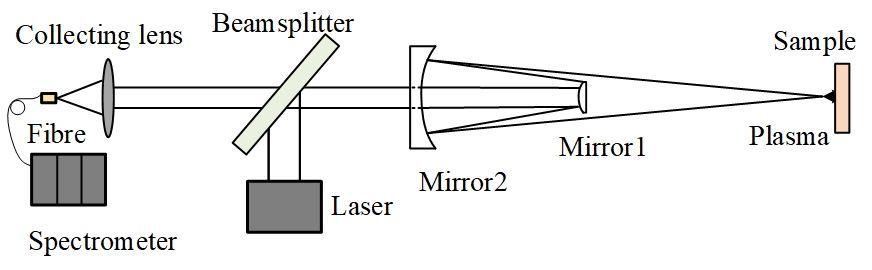

Figure  1.  The rendering of the schematic diagram of the LIBS system.

DownLoad: Full-Size Img PowerPoint

2.2   Samples

105 slag powder samples were collected from a copper smelter company. Of these, 74 samples were used for the calibration set, whereas 31 were reserved for the test set. Table 1 presents the certified concentration range of Al, Mg, Ca, and Zn elements in both the calibration and test set samples. To prepare the samples for analysis, the powder samples were pressed into pellets with a diameter of 36 mm and a thickness of 3 mm, using an electric hydraulic jack under pressure of 30 MPa for 5 min, followed by 3 min of dwell time, and 2 min of release time. For each particle sample, analysis was conducted on nine different positions, with each position subjected to 200 shots to generate an average spectrum that improved the signal-to-noise ratio (SNR). Consequently, each sample was represented by nine spectra from distinct positions.

Table  1.  Measured elements in copper slag, concentration ranges of training, and test set.

Element	Concentration range of calibration set	Concentration range of test set
Al	2.60%–5.48%	3.26%–4.29%
Mg	0.89%–2.37%	1.14%–2.17%
Ca	1.72%–4.54%	1.95%–3.56%
Zn	1.14%–4.43%	1.38%–4.02%

 | Show Table

DownLoad: CSV

2.3   Analysis methods

The calibration curve (CC) method is one of the most widely used and straightforward quantitative techniques. It involves generating a linear relationship between each element’s spectral intensity and concentration by analyzing a series of samples possessing known component information. However, this method is vulnerable to matrix effects, making it ideal for quantitative analysis of non-major elements in samples with similar matrices.

Partial least squares regression (PLSR) is a novel technique that leverages multivariate statistical data analysis methods such as principal component analysis, canonical correlation analysis, and linear regression analysis to model multiple independent variables using either a single (PLSR1) or multiple (PLSR2) dependent variables. Compared to the CC method, PLSR has several advantages, particularly when dealing with multiple correlations between variables and small sample sizes in linear regression analysis. In this study, we employed a single dependent variable partial least squares regression (PLSR1) model to analyze the elemental composition of copper slag.

To estimate and compare the analytical performance of the CC and PLSR methods regarding their quantitative analytical capabilities, we utilized several evaluation parameters, including the determination coefficient (R²), the average relative error (ARE), as well as the root mean square error of calibration (RMSEC) and root mean square error of prediction (RMSEP). The expressions of these parameters are provided below:

where ${y}_{i,\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}\mathrm{i}\mathrm{c}\mathrm{t}\mathrm{e}\mathrm{d}}$ and ${y}_{i,\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{u}\mathrm{a}\mathrm{l}}$ are the predicted and certified concentration of sample i, respectively. ${\overline{y}}_{i,\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}\mathrm{i}\mathrm{c}\mathrm{t}\mathrm{e}\mathrm{d}}$ is the average value of the predicted concentration of sample i, k is the number of samples in the calibration or test set, and m is the number of samples in the calibration set, and n is the number of samples in the test set.

3.   Results and discussion

3.1   Quantitative analysis with calibration curve (CC) method

To account for the impact of self-absorption and pulse-to-pulse variations, we selected the normalized intensity ratios of Al 308.2 nm/Fe 351.3 nm, Mg 383.7 nm/Fe 353.6 nm, Ca 445.5 nm/Fe 427.2 nm, and Zn 481.1 nm/Fe 495.7 nm, with Fe serving as the standard internal element, to establish calibration curves for Al, Mg, Ca, and Zn elements. In order to reduce the influence of different channels, the characteristic spectral lines of the matrix Fe element and the target element in the normalized intensity of the target element are located in the same channel. The full channel spectrum of the slag sample and the characteristic spectral lines of the target element in different channels are shown in figure 2. All emission lines were identified based on a representative spectrum utilizing the NIST LIBS database [25].

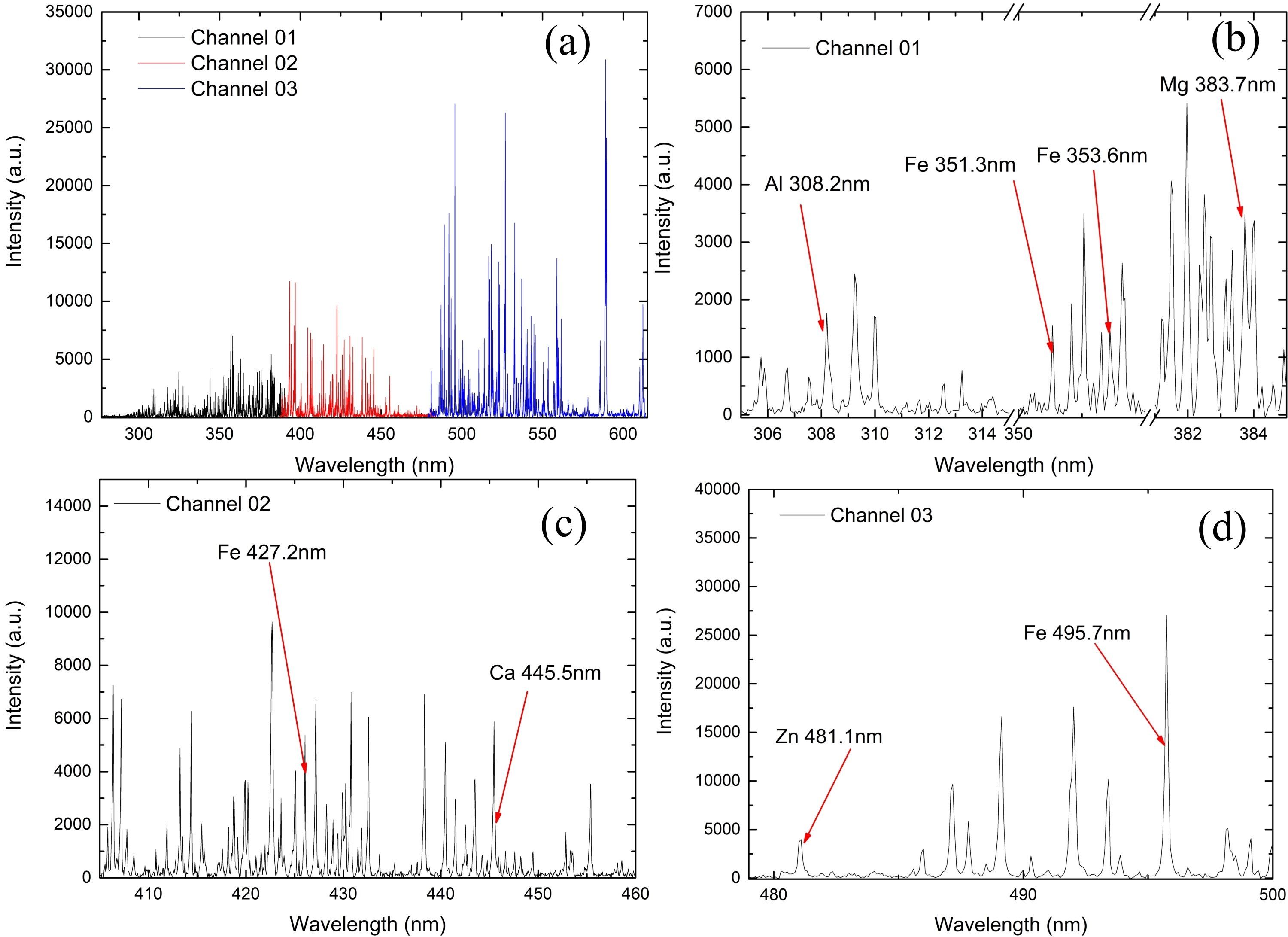

Figure  2.  Full channel spectrum (a) and characteristic spectral lines of different elements in channel 1 to channel 3 ((b)‒(d)).

DownLoad: Full-Size Img PowerPoint

The calibration curves of Al, Mg, Ca, and Zn elements are shown in figure 3. As shown in figure 3, the R² values are 0.9309, 0.9724, 0.9507 and 0.9915, respectively. These results indicate a strong linear relationship between the concentration of elements and the spectral intensity of the respective calibration samples.

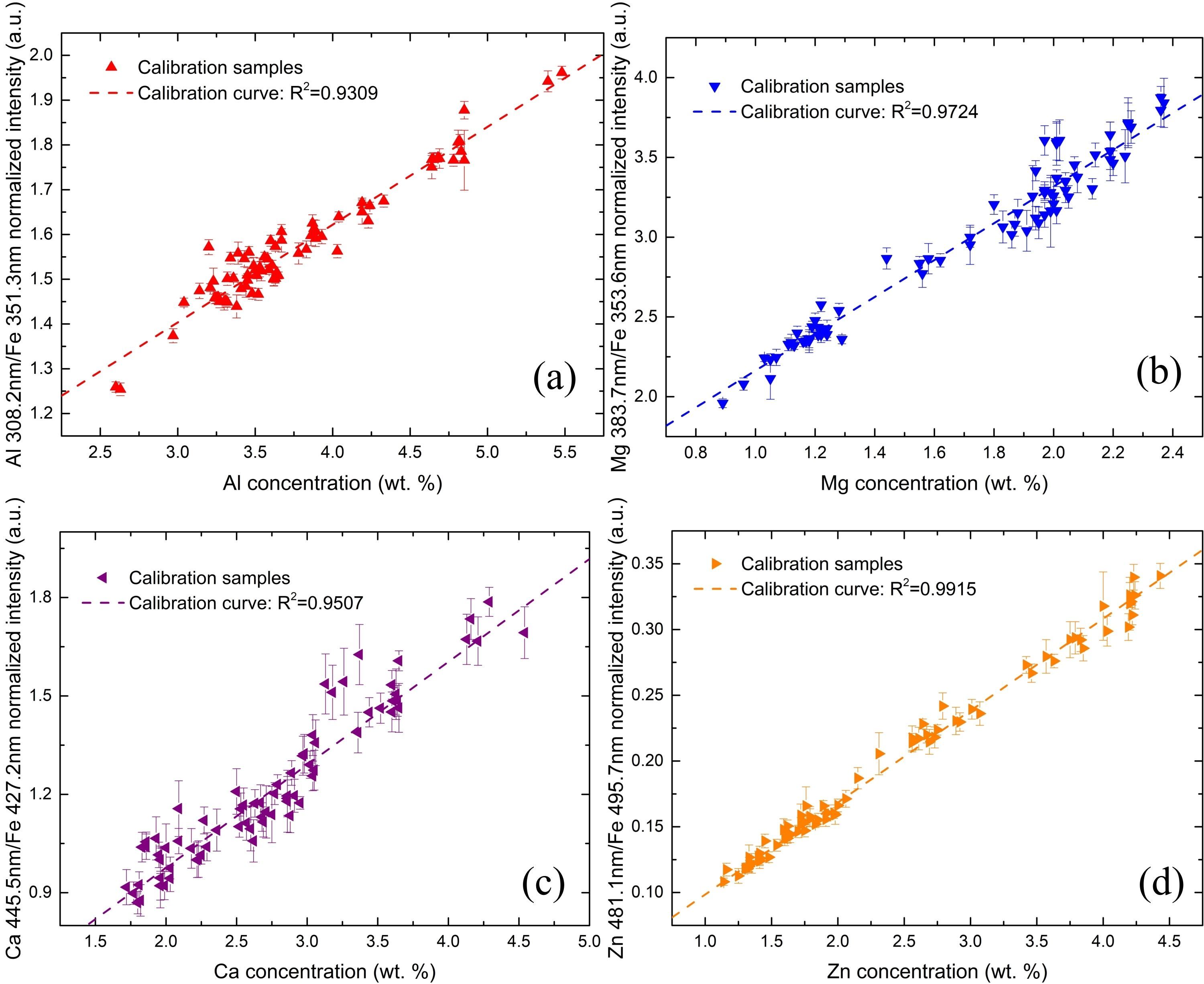

Figure  3.  The calibration curves of Al, Mg, Ca, and Zn elements.

DownLoad: Full-Size Img PowerPoint

Furthermore, we employed the calibration curves to determine the element content in both the calibration and test sets. The analysis results for both sets are presented in figure 4. The calibration set of R² values for each element is 0.9667, 0.9793, 0.9507, and 0.9955, respectively. The corresponding ARE values for each element in the calibration set are 11.87%, 6.75%, 14.11%, and 7.32%, while the RMSEC values for each element in the calibration set are 0.1536, 0.0886, 0.1895, and 0.0958, respectively.

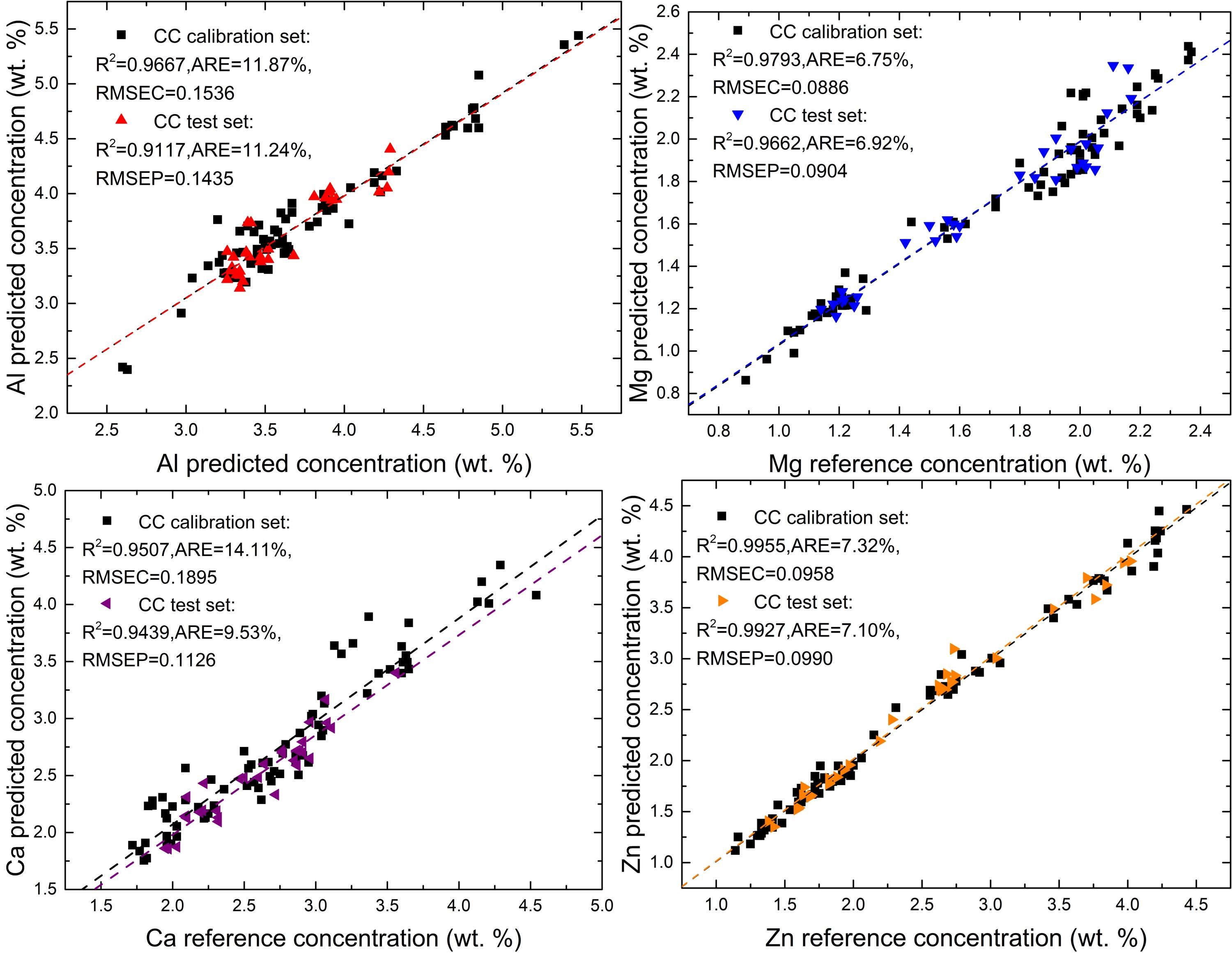

Figure  4.  The calibration and test set results of the CC method.

DownLoad: Full-Size Img PowerPoint

In figure 4, the test set of R² values for each element in the test set are 0.9117, 0.9662, 0.9439, and 0.9927, respectively. The ARE values for each element in the calibration set are 11.24%, 6.92%, 9.53%, and 7.1%, respectively. The RMSEP values for each element in the calibration set are 0.1435, 0.0904, 0.1126, and 0.099, respectively.

The limit of detections (LODs) of the target elements were calculated the standard IUPAC by 3σ/k, where σ is the standard deviation of the background near the analysis line, and k is the slope of the fitted line for the intensity ratio [26]. The calculated LODs of Al, Mg, Ca, and Zn are 0.16 wt.%, 0.091 wt.%, 0.055 wt.%, and 0.11 wt.%, respectively.

The results indicated that the calibration curve method was less impacted by matrix effects when the sample matrix was consistent. This was evidenced by the R² values of Al, Mg, Ca, and Zn elements in both the calibration and test set exceeding 0.90. Further, the RMSEC and RMSEP values were nearby, emphasizing the stability and accuracy of the calibration curve method for detecting elemental composition in pyrometallurgy copper slag samples.

3.2   Quantitative analysis with partial least squares regression (PLSR) method

Generally, PLSR is used for spectral data analysis, often using spectral data within the entire or partial band range as input data. These spectral data contain many useless noise signals, and the analysis results are susceptible to interference from noise signals. This article uses the normalized intensity of the target elements and matrix element spectral intensity ratio and the certified concentration of the target element as input data for the PLSR model, reducing the interference of different noise signals and the risk of over-fitting. According to the NIST LIBS database, the spectra lines of the Al, Mg, Ca, and Zn elements are extracted, as shown in table 2. The emission lines of Fe are also selected as the internal standard lines. Using the Fe element as the internal standard element, we obtained the normalized intensity of each target element as the input data for PLSR analysis.

Table  2.  Emission lines selected for PLSR.

Element	Emission lines (nm)
Al	308.21, 309.26, 394.41, 396.15
Mg	383.23, 383.82, 516.73, 517.27, 518.36
Ca	315.88, 370.60, 422.67, 443.51, 445.47, 487.81, 526.56, 534.95, 585.74, 612.22
Zn	330.26, 334.50, 334.85, 468.01, 472.21, 481.05
Fe	302.06, 304.76, 319.32, 344.06, 351.38, 353.65, 358.11, 371.99, 374.55, 382.04, 385.99, 404.58, 427.18, 438.24, 495.73, 556.96, 572.20, 574.79

 | Show Table

DownLoad: CSV

PLSR is a multivariate statistical analysis method based on factor analysis that can effectively eliminate multiple correlations. The selection of the number of principal components (PC) is a crucial parameter that affects the performance of the PLSR model. To avoid over-fitting or sub-fitting of the model, a 10-fold cross-validation method is used to optimize the selection of the number of principal components (PC). Figure 5 shows the relationship between the number of PCs for Al, Mg, Ca, and Zn elements and root mean square error of cross validation (RMSECV) of the validation model. The optimal PC numbers for Al, Mg, Ca, and Zn elements are 9, 16, 13, and 16, respectively, when the RMSECV values reach their minimum or constant values.

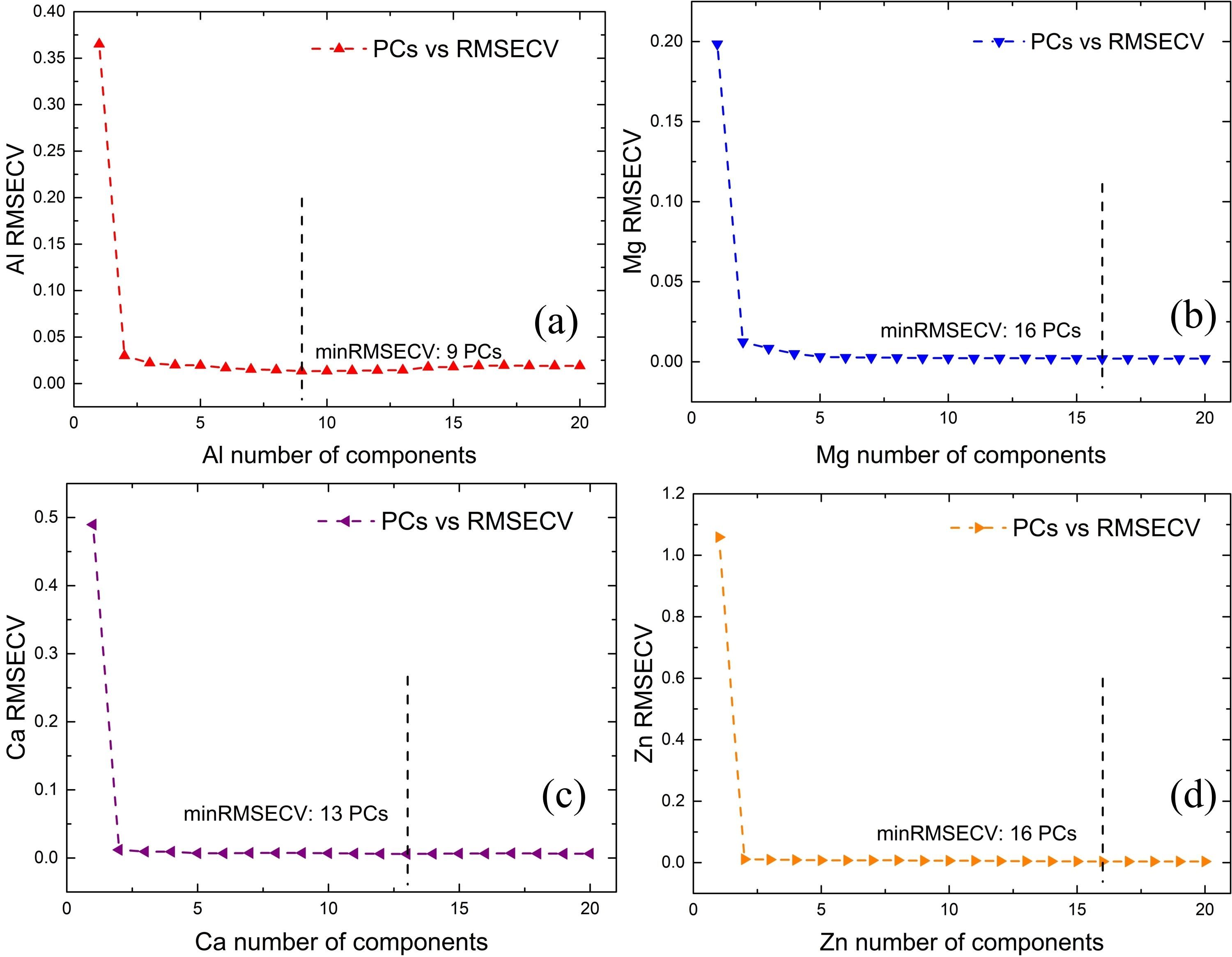

Figure  5.  The number of principal components versus RMSECV for Al, Mg, Ca, and Zn.

DownLoad: Full-Size Img PowerPoint

Subsequently, we have built a PLSR model, utilizing the optimal number of PCs for each element, to determine the elemental content in the calibration and test set samples. The obtained results are displayed in figure 6. The R² values of the calibration set for each element in the calibration set are 0.9906, 0.9966, 0.9969, and 0.9992, respectively. The corresponding ARE values for each element in the calibration set are 6.91%, 2.89%, 4.39%, and 4.08%, with the RMSEC values being 0.0823, 0.0359, 0.0541, and 0.0408, respectively.

Figure  6.  The calibration and test set results of the PLSR method.

DownLoad: Full-Size Img PowerPoint

The results obtained for the test set, as shown in figure 6, indicate that the R² values of each element test set are 0.9543, 0.99, 0.972, and 0.9968, respectively. The corresponding ARE values for each element in the test set are 7.24%, 3.75%, 7.19%, and 5.65%, respectively, with the RMSEP values being 0.021, 0.0164, 0.0033, and 0.0171, respectively. It is noteworthy that compared to the CC method, the PLSR method has enhanced the calibration set and test set R² values, reducing ARE, RMSEC, and RMSEP by approximately 50%. This suggests that the accuracy and stability of prediction have been significantly improved. Hence, it is evident that the PLSR method exhibits excellent quantitative analysis ability for elements in copper slag samples compared to the CC method.

The obtained R², ARE, RMSEC, and RMSEP values for Al, Mg, Ca, and Zn elements from the CC and PLSR analysis method are summarized in tables 3 and 4. These results establish that the PLSR method surpasses the CC method regarding predictive accuracy. Leveraging multivariate input data with various spectral line intensity ratios, we reduced the influence of matrix and self-absorption effects. This study demonstrates that integrating LIBS and PLSR enables accurate detection of the elemental concentration in copper slag, thus serving as a reliable and practical approach. Furthermore, this study could serve as a valuable reference for online detection of the elemental composition of high-temperature molten copper slag using the LIBS system.

Table  3.  Comparisons of R², ARE, RMSEC of Al, Mg, Ca, and Zn elements calculated by CC and PLSR analysis methods of the calibration set.

Element	R2			ARE			RMSEC
	CC	PLSR		CC	PLSR		CC	PLSR
Al	0.9667	0.9906		11.87%	6.91%		0.1536	0.0823
Mg	0.9793	0.9966		6.75%	2.89%		0.0886	0.0359
Ca	0.9507	0.9969		14.11%	4.39%		0.1895	0.0541
Zn	0.9955	0.9992		7.32%	3.36%		0.0958	0.0408

 | Show Table

DownLoad: CSV

Table  4.  Comparisons of R², ARE, RMSEP of Al, Mg, Ca, and Zn elements calculated by CC and PLSR analysis methods of the test set.

Element	R2			ARE			RMSEP
	CC	PLSR		CC	PLSR		CC	PLSR
Al	0.9117	0.9543		11.24%	7.24%		0.1435	0.0210
Mg	0.9662	0.990		6.92%	3.75%		0.0904	0.0164
Ca	0.9439	0.972		9.53%	7.19%		0.1126	0.0033
Zn	0.9927	0.9968		7.10%	5.65%		0.0990	0.0171

 | Show Table

DownLoad: CSV

4.   Conclusions

In conclusion, a remote LIBS system combined with CC and PLSR methods based on characteristic spectral intensity ratios has been successfully utilized to detect Al, Mg, Ca, and Zn elements in copper slag samples from pyrometallurgy processes. The precision and accuracy of the two analysis methods were investigated and evaluated using a comparison with reference values. It was evident that the PLSR method outperformed the CC method in terms of the improvement of R² for both the calibration set and test set, as well as the significant reduction in ARE, RMSEC, and RMSEP to approximately half of those of the CC method. This indicates that the PLSR method demonstrates a higher accuracy in the quantitative analysis of elements in copper slag samples. Based on the results, the combination of LIBS and PLSR is a viable approach to detecting the elemental concentration in copper slag. It could serve as a reference for online detection of the elemental composition of high-temperature molten copper slag using the LIBS system.
