Adaptive protograph-based BICM-ID relying on the RJ-MCMC algorithm: a reliable and efficient transmission solution for plasma sheath channels

1.   Introduction

Due to the wide application prospects of hypersonic vehicles in civil and military fields, research on the communication technology of hypersonic aircraft has attracted widespread attention. However, when reentering or moving in the atmosphere at a speed exceeding Mach 8, the vehicle will be surrounded by a plasma layer (also called the plasma sheath) [1, 2], which can attenuate electromagnetic (EM) waves. The plasma sheath (PS) channel presents highly dynamic and non-stationary characteristics [3, 4] with parasitic modulation effects [5]. These effects seriously affect the quality of reentry communication and can even cause radio blackouts [6–9]. The problem of radio blackouts has not been completely solved yet.

Many methods have been developed to mitigate communication blackouts by lowering the PS electron density [10–12], such as aerodynamic shaping [13], liquid quenchant injection [14], and electromagnetic windowing [15, 16]. However, the practical shortcomings and engineering obstacles of these methods have not been satisfactorily resolved. A probably feasible solution, aiming at adapting to the high dynamics and large-scale fading characteristics of the plasma sheath channel, is to design adaptive communication methods to alleviate communication blackout, such as increasing transmitted power or communication frequency [17], employing low-frequency communication [18], channel prediction relied on the reflected waves [19], and using an adaptive data rate control method based on the antenna voltage standing wave ratio (VSWR) [20]. Regarding modulation and demodulation methods over the PS channel, [21] and [22] investigated the performance of traditional modulation methods over the PS channel from theoretical and experimental perspectives, respectively. Research has shown that non-coherence frequency shift keying (NC-FSK) is better than phase-shift keying (PSK) and amplitude shift keying (ASK) modulations. Owing to the parasitic modulation effect, PSK modulation over the PS channel presents a great challenge. To address this problem, Yang et al proposed a novel demodulation method based on spectral clustering for PSK signals over the PS channel [23]. Liu et al developed a joint demodulation and estimation algorithm based on a Bayesian learning method for extracting curves on the signal constellation and identifying the transmitted symbols [24].

However, these existing methods rarely involve coding schemes, nor do they exploit joint processing techniques for signal detection and decoding. Due to the non-stationary nature of PS channels, the performance improvement of these methods is limited. In fact, in many communication scenarios, the joint processing technique for signal detection and decoding can yield joint gains in addition to coding gains, and the LDPC-BICM-ID system [25–28] has been proved to be very effective and popular. Bit-interleaved coded modulation and iterative decoding (BICM-ID), which practically utilize iterative information exchange between the demodulator and the channel decoder while obtaining knowledge of other bit values, can achieve highly reliable wireless communication. The application of an interleaver in BICM-ID can also address sudden changes in the channel. Therefore, the LDPC-BICM-ID system can adapt to deep fading and dynamic channels. Note that the PS channel is just a kind of deep fading and highly dynamic channel. PSK and quadrature amplitude modulation (QAM) are widely used in LDPC-BICM-ID systems. However, high-order PSK modulations with poor bit error rate (BER) performance are difficult to apply to PS channels. Therefore, to achieve highly reliable and efficient communication performance under the PS channel, the LDPC-BICM-ID system based on binary PSK (BPSK) may be a feasible solution.

Low-density parity-check (LDPC) codes [29, 30] and protograph codes [31, 32] have been extensively researched and combined with BICM-ID systems over many channels, such as fast-fading, block-fading, and satellite communication channels. However, designing an adaptive BICM-ID system over the PS channel remains a challenge. This is because PS channels possess a parasitic modulation effect and non-stationary characteristics, and the prior probability density function of the received signal is unknown. Thus, the soft information for maximum a posteriori (MAP) detector cannot be accurately calculated.

Against this background, an adaptive modified protograph-based BICM-ID (P-BICM-ID) framework with BPSK modulation for PS channels is proposed. The main contribution of this work is that an adaptive soft information estimation method based on reversible-jump Markov chain Monte Carlo (RJ-MCMC) for our P-BICM-ID system is developed to calculate the soft information. Considering the uncertainty of the prior channel information of PS channels, the PDF of the channel soft information for BICM-ID is adaptively estimated using the RJ-MCMC algorithm, and then the soft information is calculated and used to decode iteratively.

The remainder of this paper is organized as follows. In section 2, the dynamic PS channel is modeled, and the parasitic modulation effect on the BPSK signal is analyzed. Section 3 proposes an adaptive P-BICM-ID system over PS channels. Then, numerical examples and analyses under different channel conditions are presented in section 4. Finally, this work is summarized in section 5.

2.   Dynamic PS channel modeling and its impact on BPSK signals

2.1   Electron density modeling

During reentry, electron density fluctuates violently and varies in the spatial and temporal domains. The spatiotemporal electron density N_e (z, t) [3] can be described as follows:

where $\overline{N_{\mathrm{e}}}(z, t)$ is the average distribution of electron density from the surface of the vehicle outward, θ is the angle of attack (AOA), and A has a typical value of 0.1 per degree [3]. δ(t) is the Gaussian jitter [33] with zero mean and standard deviation σ_max. Suppose that θ follows a sinusoidal function with amplitude A_θ and frequency f_θ. In addition, $\overline{N_{\mathrm{e}}}(z, t)$ presents large-scale changes in electron density and can be represented by [34]:

where N_{e peak} is the peak value of the electron density, z_peak is the position of N_{e peak}, z_max is the sheath thickness, c₁ and c₂ are parameters, and B is a proportion coefficient with a typical value of 1/14 per degree [35]. The typical values of N_e (z, t) are listed in table 1.

Table  1.  Typical values of N_e (z, t).

Ne peak	zmax	zpeak	c1	c2	σmax	fθ	Aθ
1×1018–1×1019 m-3	0.06 m	0.03 m	2.56×103	3.55×103	0.05–0.1	4 Hz	0°–5°

 | Show Table

DownLoad: CSV

In our spatiotemporal electron density model, the large-scale change of electron density by flight speed and height, mesoscale change by the angle of attack, and small-scale disturbance are considered. Therefore, the model is suitable for all deep fading, non-stationary, highly dynamic PS channels. Reference [36] also constructs a simple model, which only considers the large-scale and small-scale factors. Our model is more reasonable than this model. What is more, [37] derived the outage probability of NC-MFSK (non-coherent M-ary frequency shift keying) modulation based on our channel model.

2.2   Time-varying plasma sheath channel

To ensure the accuracy and efficiency of calculation, a layered PS model is used to approximate the real continuous model. The PS is modeled as M neighboring uniform thin PS slabs with the complex dielectric constant ε(z_m, t) (m=1, …, M), as shown in figure 1. The layer thickness is d_m =z_max/M. The plasma sheath channel h(t) can be precisely calculated by using the transmission line analogy method [33].

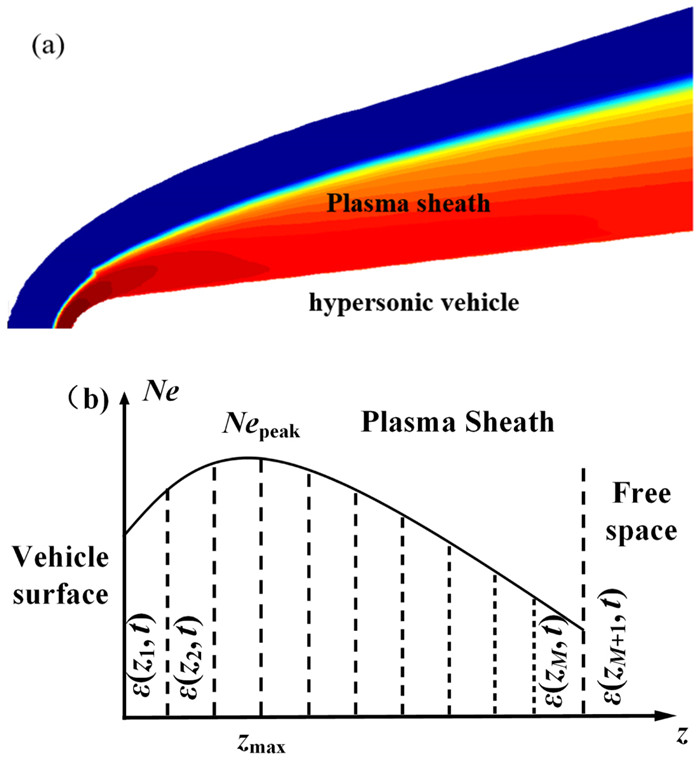

Figure  1.  (a) Plasma sheath and (b) layered model of plasma sheath.

DownLoad: Full-Size Img PowerPoint

ε(z_m, t) can be determined by

where f_p(z_m, t) is the plasma frequency of the mth layer, v is the electron collision frequency, ω=2πf_EM, and f_EM is the carrier frequency. The propagation constant k(z_m, t) can be described as

where μ₀ is vacuum permeability.

The wave impedances of the mth layer is

The transmission line matrix can be calculated by

Finally, the overall transmission matrix can be obtained as

The PS channel h(t) can be calculated by

where Z(z_M+1, t) donates the wave impedance of the (M+1)th layer and Z(z₀, t) presents the wave impedances of the vacuum layer.

2.3   Impact of the dynamic PS channel on BPSK signals

For BPSK modulation with the initial phase ±π/2, the signal transmitted in one symbol period is given by

where E_s is the symbol energy and T_s is the symbol period. The received signal is expressed as

where n(t) is assumed to be additive white circularly complex Gaussian noise with zero mean and variance σ². The bit signal-to-noise-ratio (SNR) γ_b is defined as E_s/σ².

To comprehensively understand the effect of PS channels on BPSK signals, two typical simulations are performed [5, 38]. Simulation case 1: N_{e peak} = 4×10¹⁸ m^-3, σ_max=0.05, A_θ =4°, v = 1 GHz, f_EM=32 GHz, and γ_b=20 dB; simulation case 2: N_{e peak} = 1×10¹⁹ m^-3, σ_max=0.1, A_θ =0°, v=1 GHz, f_EM=32 GHz, and γ_b=20 dB.

As shown in figure 2, there are two scattered sets representing bits 0 and 1 in the constellation diagram of the BPSK signals and the constellations rotate dynamically due to the random jitter of the electron density and AOA change, indicating that the dynamics and parasitic modulation effect of PS channels are severe. The statistical characteristics of the signal phases are shown in figure 3. Under case 1, the phase conditional probability density function (CPDF) for bit 0 or 1 presents multipeak features because the change in AOA makes the channel exhibit non-stationary characteristics. Under case 2, since the AOA is equal to 0°, each phase CPDF exhibits one dominating peak. However, two scatter sets representing bits 0 and 1 overlap in constellations when N_{e peak} increases to 1×10¹⁹ m^-3. This is because the increase in N_{e peak} leads to a more dynamic signal, thereby deteriorating the communication performance. Moreover, unexpected phase shifts occur in the CPDFs, and the phase centers move away from ±π/2 due to the parasitic modulation effect, which brings great difficulties for correct demodulation.

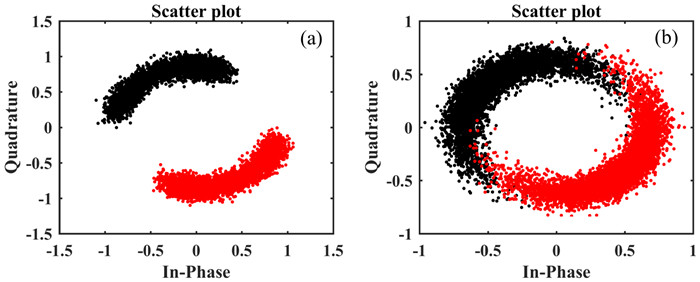

Figure  2.  Received signals under (a) case 1 and (b) case 2.

DownLoad: Full-Size Img PowerPoint

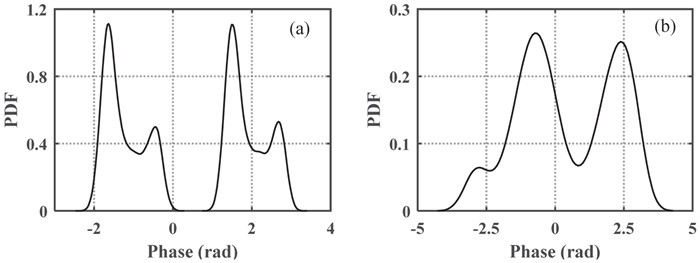

Figure  3.  Phase CPDFs under (a) case 1 and (b) case 2.

DownLoad: Full-Size Img PowerPoint

From figures 2 and 3, the PS channel exhibits serious signal attenuation and phase shift effects. Thus, the prior PDF of the received signal is unknown, which makes the traditional soft detector of BICM-ID for PS channels no longer effective. Therefore, the design of a P-BICM-ID system over the PS channel is a great challenge.

3.   System model and adaptive scheme

To overcome the above challenge, this work proposes a P-BICM-ID system in which the RJ-MCMC algorithm adaptively estimates soft information. At the receiver, the phase detector is used to calculate and correct the signal phase, and the soft detector is used to adaptively estimate the CPDF of the signal and calculate the soft information. The CPDF of the signal fluctuates randomly with the change in the non-stationary PS channel, and it can be expressed as a mixed Gaussian function. The RJ-MCMC algorithm can be used to adaptively estimate the state parameters of the multi-Gaussian process. The soft information is then calculated based on the estimated PDF of the PSK signal and is used to decode iteratively.

3.1   System model

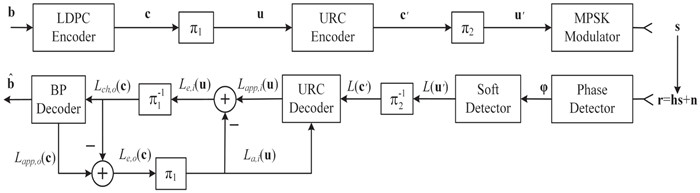

The proposed adaptive P-BICM-ID system relying on the RJ-MCMC algorithm is illustrated in figure 4.

Figure  4.  Adaptive P-BICM-ID model over plasma sheath channels.

DownLoad: Full-Size Img PowerPoint

The signal to be transmitted is denoted by s=[s₁, s₂, …, s_L], a vector of L BPSK symbols. After the signal travels through the time-varying PS channel, r=[r₁, r₂, …, r_L] is received at the receiver as shown in figure 4. At the transmitter, the information bit stream b is encoded by an LDPC encoder [28] producing the bitstream c, which is then fed to the random bit interleaver π₁. The generated stream u is then sent to the unity-rate code (URC) encoder [32], where the produced coded bitstream c' is interleaved by the interleaver π₂, generating the bitstream u'. The URC encoder is used to avoid the BER floor [39]. Then, the modulator maps the bits to symbols s. At time instant n, the BPSK signal s_n travels through PS channel h_n, and the received signal r_n is obtained by the receiver.

At the receiver, to achieve better joint demodulation and decoding performance, a phase detector, soft detector, URC decoder, and belief propagation (BP) decoder are employed, as shown in figure 4. The phase detector is used to accurately calculate and correct the phase φ of the received signal r. The URC decoder processes the logarithmic-likelihood ratios (LLRs) L(u') produced by the soft detector, deinterleaved by π₂, the generated L(c') is passed to the iterative URC and BP decoders, and the a posteriori LLRs L_{ch, o}(c) is computed. Iterative detection is conducted by exchanging extrinsic information between the outer BP decoder and the inner URC decoder. Finally, the estimated bitstream $\hat{\boldsymbol{b}}$ is judged and output.

For LDPC codes, the protograph LDPC codes retain the advantages (approximate to the capacity limit) of traditional LDPC codes and have the advantage of simple structures. In this study, we adopt the promising protograph LDPC code family from the 3GPP TS 38.212 protocol [40], which has a low decoding threshold and a minimum distance that grows linearly with increasing block-length. The code rate R_c = L/N, where L is the information bit number per codeword of length N. The transmitted SNR is defined as γ=γ_b+10log₁₀(R_c).

3.2   Phase detector

Owing to the serious parasitic modulation effect, unexpectedly high phase shifts occur in CPDFs, which brings great difficulties for correct demodulation. To demodulate the information correctly, the signal phase is first amended by the phase detector before estimating the phase CPDFs.

Two problems must be solved when calculating the signal phase. As shown in figure 2, there are obviously two-phase clusters corresponding to bits 0 and 1, but the corresponding relationship cannot be determined. In addition, under the effect of parasitic modulation the position of the phase CPDF is shifted and the center phases move away from ±π/2, as shown in figure 3. The first problem can be solved by inserting a small number of pilot symbols to distinguish the clusters. For the second problem, an appropriate phase correction method should be executed so that the two dominating peaks are close to the two fixed values ±π/2. In this work, ideal timing synchronization and carrier frequency synchronization is assumed. In actual systems, many synchronization methods can be transmitted to ensure timing synchronization and carrier synchronization, such as Zadoff-chu pilots with given frame headers [41, 42], and phase-locked loop technologies [43, 44].

The phase correction is performed as follows:

(1) The phase sequence {φ_n} of r(t) is first calculated. Next, we divide {φ_n} into two subsets with a boundary 0, and then acquire the mean value of each subset, p₀ and p₁.

(2) A phase shift |p₁+p₀|/2 is performed so that the two dominating peak phases are shifted to approximately ±π/2.

(3) Step (1) to Step (2) are repeated t_max times, where t_max is the maximum iteration number. Finally, the corrected {φ_n} is divided into two-phase subsets with a boundary 0.

Let χ₀ and χ₁ denote bit subsets representing bits 0 and 1, respectively; Φ₀ and Φ₁ can denote the corresponding phase subsets.

3.3   Adaptive soft detector based on RJ-MCMC algorithm

Considering that the CPDF of the signal phase randomly fluctuates with the change in the non-stationary PS channel, prior channel information is difficult to achieve at the receiving end. Therefore, the RJ-MCMC algorithm is used to track the phase CPDF.

Since the corrected phase is disturbed around ±π/2 under the non-stationary PS channel, it can be regarded as a multistate quasi-stationary stochastic variable. The multistate numbers of the two-phase sequences corresponding to bits 0 and 1 are the same because the two sequences experience the same channel. To describe the multistate statistical characteristics, the two received phase sequences can be characterized by mixed Gaussian processes [45] as follows:

where K is the state number for each mixed Gaussian process, and ω_k, μ_k, and σ_k² (k=1, …, 2K) are the weight, mean, and variance of the kth sub-distribution, respectively. Furthermore, the RJ-MCMC algorithm [46] is adopted to adaptively distinguish the state number and obtain the distribution parameters. The estimation process is elaborated as follows.

A two-dimensional sequence (φ_n, z_n) is adopted to represent the multistate time-varying process of the phase sequence φ_n through the PS channel, where z_n∈{1, …, 2K} indicates the sequence of the corresponding hidden states.

With respect to the RJ-MCMC algorithm, the parameters to be searched are λ = (μ, σ, z, ω), where μ = (μ), σ=(σ_k), and ω=(ω_k). Their prior distributions are set as follows:

(1) The state number K follows a Poisson distribution with [1, 2…, K_max], where K_max is the largest acceptable value. The initial value K is set as 1.

(2) The weight vector ω obeys the Dirichlet distribution: ω~D(δ₁, δ₂, …, δ_2K), with the initial value of δ₁, δ₂, …, δ_2K equal to 1.

(3) μ_k ~ N (ξ, κ^-1) and σ_k² ~ G(α, β), where the parameters β ~ G(α, β), α=2, κ = ϵ^-2, ξ = φ_min+ϵ/2, g=0.2, h=10/ϵ², ϵ = φ_max - φ_min, φ_max = max{φ_n}, φ_min = min{φ_n}. G(·) denotes the Gamma distribution.

The complete joint PDF, as the distribution of interest [47], is described as

where η = (α, β, ξ, κ). The parameter space x = (η, K, ω, z, μ, σ, φ) containing all distribution parameters at iteration N is updated to a new parameter space, i.e. x' = (η', K', ω', z', μ', σ', φ') at iteration N+1. Each iteration from x to x' is categorized in five consecutive moves as follows:

(1) Update ω:

where is the number of states k during iteration N.

(2) Update (μ, σ):

(3) Update z:

(4) Update β:

(5) Split or combine states.

For the combined states, two channel states are randomly chosen and combined into a new one. Correspondingly, the hidden states are also combined. Conversely, for the split step, a randomly selected state is separated into two. The choice between the split and combine steps depends on the probability d_k which is a random number following a uniform distribution over (0, 1).

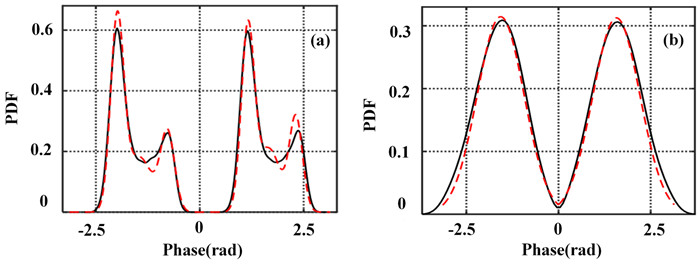

Figure 5 compares the statistical curves and mixed Gaussian curves of the corrected phase CPDFs under two typical cases, where the Gaussian fitting results obtained by the RJ-MCMC algorithm are in red dashed lines and the statistical results are in black solid lines. The two dominating phases corresponding to bits 1 and 0 are shifted to near ±π/2, and the PDF shapes exhibit quasi-symmetric characteristics, which also proves the high calculation accuracy of the phase detector. The six-state Gaussian distribution (2K=6) fits the phase PDF in case 1 and the two-state Gaussian distribution (2K=2) fits the phase PDF in case 2 by our algorithm. Observe that the mixed Gaussian curves can fit the phase CPDFs well in the two cases, meaning that the phase CPDFs fitted by the RJ-MCMC algorithm can be used in BICM-ID systems. Additionally, notice that the mixed Gaussian curves have some fitting discrepancies near the extreme point of the curves in figure 5(a). The one reason for the fitting discrepancy is the presence of noise, and another reason is that the fitted Gaussian state number is small. The more the number of states, the better the fitting effect, but the higher the computational complexity. However, only the intersection of two-phase PDF curves will affect communication performance, so the fitting discrepancy near the extreme point of the curves does not affect the method performance. The larger the intersection area, the worse the performance. Therefore, the fitting result of the curve edges determines the accuracy of the method. Our fitting method can guarantee this with a small state number.

Figure  5.  Results of the statistical model and mixed Gaussian model after phase correction in (a) case 1 and (b) case 2. (Statistical curve displayed in black solid lines and mixed Gaussian curve displayed in red dashed lines.)

DownLoad: Full-Size Img PowerPoint

Considering the two signal phase sequences corresponding to bits 0 and 1 experience the same PS channel, the multistate numbers of the two sequences are the same and can be determined after the total state number 2K is adaptively estimated by RJ-MCMC algorithm. All state parameters of the mixed Gaussian distribution on two typical cases are listed in tables 2 and 3. It can be seen that the state number for each mixed Gaussian process is 3 for case 1, and the one is 1 for case 2.

Table  2.  States parameters of the mixed Gaussian distributions for case 1.

	State 1	State 2	State 3	State 4	State 5	State 6
Mean μ	-1.9877	-1.4592	-0.7758	1.1555	1.6648	2.3141
Variance σ	0.1599	0.3118	0.1700	0.1572	0.2715	0.1589
State probability ω	0.2480	0.1419	0.1099	0.2345	0.1422	0.1234

 | Show Table

DownLoad: CSV

Table  3.  States parameters of the mixed Gaussian distributions for case 2.

	Mean μ	Variance σ	State probability ω
State 1	-1.5766	0.6377	0.5010
State 2	1.5639	0.6341	0.4990

 | Show Table

DownLoad: CSV

After all space parameters are achieved by the RJ-MCMC, the phase CPDFs for bits 0 and 1, f_φ|χ0 (φ|χ₀) and f_φ|χ1 (φ|χ₁), can be written as

and

respectively.

At the receiving end, the soft decoder produces the soft phase information for the coded bitstream u', which is denoted by the LLR L(u_n') for the nth bit. Owing to the agreeable Gaussian fitting results, the output of the soft decoder for the nth bit, L(u_n'), can be represented as

3.4   Iterative URC-BP-decoder

To improve the system performance, a URC detector and a BP decoder with an iterative feedback loop are employed. The key problem lies in designing the interfaces from the soft detector and BP decoder to the URC decoder input port.

For the non-stationary channel, L_M(u_n'), as the output of the soft decoder, is given by

The a posteriori probability P(u_n | φ_n) may be computed using the a priori information L(u_n') and the information L_{a, i} (u_n) gleaned from the outer decoder, which is defined as

Explicitly, according to Bayes’ rule, we have

for b∈{0, 1}. Based on equations (20)–(22), the URC decoder generates the extrinsic soft information

being passed back into the BP decoder. Then, the iterative decoding is performed.

Generally, compared with the traditional BICM-ID system, the program running time of our proposed adaptive system increases by 11%. However, the highly dynamic and non-stationary characteristics and parasitic modulation effects of the PS channel make the traditional BICM-ID system no longer effective. Our solution can use a small computational cost to solve these problems, and the simulations will be introduced in section 4.

4.   Simulation results and discussion

This section describes examples of several simulations that were performed to validate the high performance of the new P-BICM-ID system for joint demodulation and decoding under the PS channel. The proposed scheme was compared with the existing methods in terms of BERs under different SNRs. The effects of PS channel parameters and protographs with different code rates and information bit numbers on the new system were also investigated. The simulations prove the superiority of the new method over the other two methods. The proposed adaptive P-BICM-ID system exhibits better performance and has high robustness and adaptability to the highly dynamic PS channel. The plasma sheath parameters in our simulations are described in section 2. Protographs with R_c={1/2, 2/3, 3/4, 5/6} and L={528, 1056, 2112, 4224} bits are considered. In addition, we denote the inner and outer iteration numbers by I_i and I_o, respectively.

4.1   Method comparison

The adaptive BICM-ID system with different iteration numbers I_o is first compared with the methods in [23] and [24] for demodulation and decoding under case 1, as shown in figure 6. For the protograph code, R_c=1/2, L=528, and I_i=10. The performance of the methods in [23] and [24] under case 1 is relatively similar but greatly inferior to that of our adaptive P-BICM-ID system. The adaptive P-BICM-ID system has the best performance with a steep-waterfall region since corrected signal phase CPDFs are used to estimate the soft information and the joint optimization of the LDPC iterative soft decoding and P-BICM-ID system brings both high coding gain and excellent error performance. The performance of the adaptive new system improves as I_o increases and increases by more than 11 dB at BER=10^-6 compared to those of the other two methods. In addition, when I_i =10 and I_o =10, the system performance is already very good, and the performance improvement space is limited. Therefore, both I_i and I_o can be chosen as 10 in the analysis below.

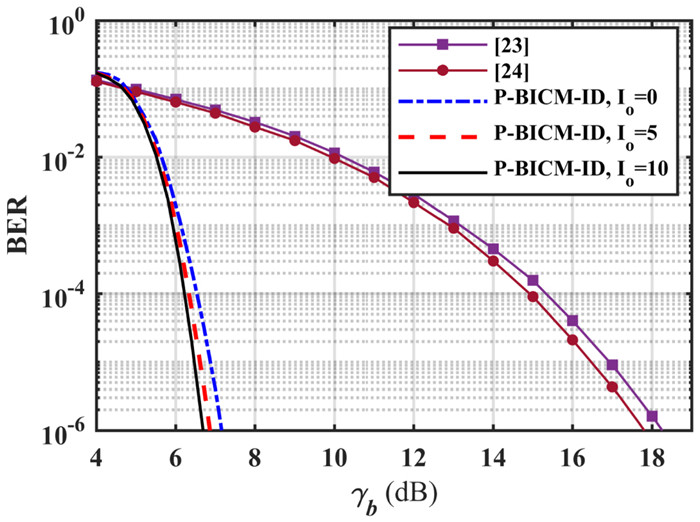

Figure  6.  BER comparison of our adaptive P-BICM-ID system with those of [23] and [24] under condition 1.

DownLoad: Full-Size Img PowerPoint

Furthermore, we analyze the superiority of the adaptive P-BICM-ID system accurately. It is compared with the methods in [23] and [24] with LDPC codes under case 1 and case 2, as shown in figure 7. The proposed system has a greater than 5 dB improvement over the methods with LDPC codes in [23] and [24] at BER=10^-6 under case 1 in figure 7(a). As seen in figure 7(b), the proposed system can reach a BER of 10^-6 at 22 dB. However, for the other two systems, performance floors appear around BER =10^-3 as γ_b increases. As N_{e peak} and σ_max increase, the plasma sheath channel worsens, and the phase jitter becomes stronger. As a result, the schemes with LDPC codes in [23] and [24] cannot cope with this channel situation. From the scheme comparisons, the superiority of the adaptive P-BICM-ID system is proven.

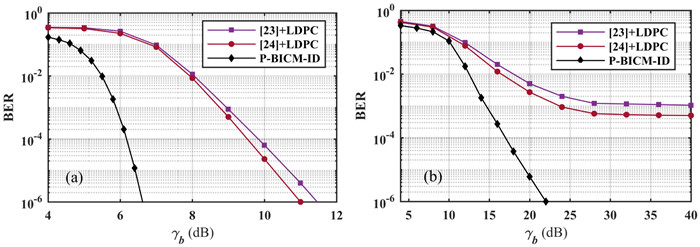

Figure  7.  BER curves of our adaptive P-BICM-ID system, [23] with LDPC, and [24] with LDPC under (a) case 1 and (b) case 2.

DownLoad: Full-Size Img PowerPoint

4.2   Robustness analysis

Figures 8 and 9 depict the BER curves of the proposed method under the influence of N_{e peak} and σ_max or A_θ, where R_c=1/2 and L=4224. From the figures, the larger A_θ, σ_max, and N_{e peak} are, the stronger the channel non-stationarity, and the worse the system performance. In telemetry communication, 10^-6 is generally set to be a BER threshold to judge whether there is reliable communication. When N_{e peak} = 1×10¹⁸ m^-3, the BERs for different σ_max or A_θ are less than 10^-6 at γ_b ≥ 4.5 dB, and the BER curves almost overlap. This means that at a low N_{e peak}, the impact of σ_max or A_θ is trivial. However, when N_{e peak} = 1×10¹⁹ m^-3, N_{e peak} is relatively high, the performance worsens, and the impact of σ_max or A_θ is obvious. Therefore, to achieve a BER below 10^-6, a larger γ_b is required. The required γ_b values are 8.2 and 11.6 dB when σ_max=0.05 and 0.1, respectively, as shown in figure 8. The required γ_b values are 8.2 dB, 11.0 dB, and 20.9 dB at A_θ =0°, 2°, and 4°, respectively, as shown in figure 9. In general, with increasing σ_max, A_θ, and N_{e peak}, the system performance decreases. However, although A_θ, σ_max, and N_{e peak} reach 4°, 0.1, and 1×10¹⁹ m^-3, respectively, the γ_b required to meet BER=10^-6 is still within the acceptable range. Thus, the new scheme is considerably robust to the effects of changes in the PS channel on the performance of demodulation and decoding.

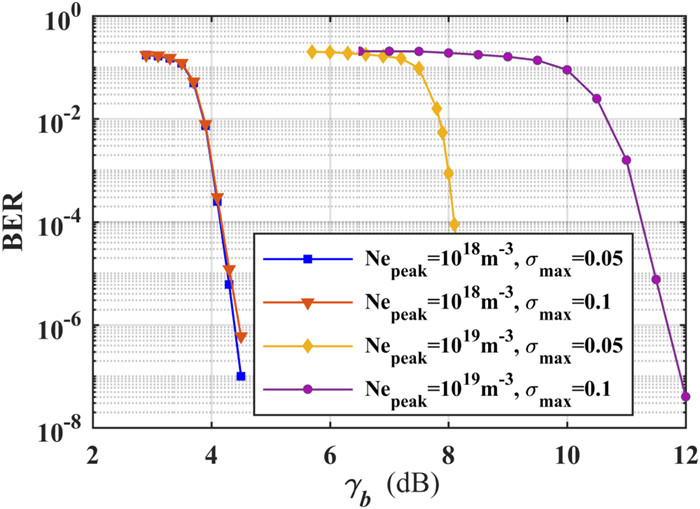

Figure  8.  BER curves with N_{e peak} = 1×{10¹⁸ m^-3, 10¹⁹ m^-3}, σ_max=0.05/0.1, A_θ =0°.

DownLoad: Full-Size Img PowerPoint

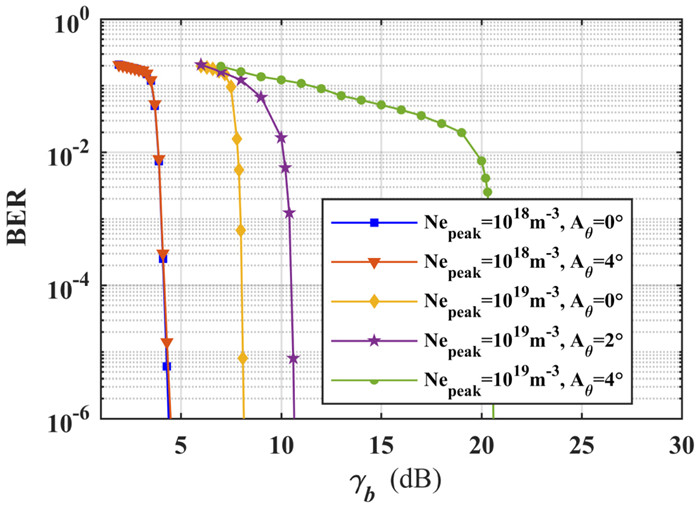

Figure  9.  BER curves with N_{e peak} = 1×{10¹⁸ m^-3, 10¹⁹ m^-3}, A_θ =0°–4°, σ_max=0.05.

DownLoad: Full-Size Img PowerPoint

Take the RAM-C reentry flight test [48] as an example. When the reentry flight altitude h=71 km, N_{e peak} =1×10¹⁷ m^-3, and A_θ ≤ 4°; when h=47 km, N_{e peak} =1×10¹⁸ m^-3, and A_θ ≤4°; when h=30 km, N_{e peak} reaches a maximum of 1×10¹⁹ m^-3, and A_θ ≤4°. The existing communication scheme adopts S- or X- band communication, and the RAM-C vehicle is almost in radio blackout during the flight from 71 km to 30 km [21]. However, if the proposed adaptive P-BICM-ID system is adopted, reliable communication during the whole reentry can be ensured when γ_b≥21 dB; reliable communication from 71 km to 47 km can be ensured when γ_b≥4 dB. Therefore, the new system can greatly alleviate radio blackouts.

4.3   Impact of protographs with different R_c and L

Furthermore, we analyze the impact of R_c and L on the decoding performance of the proposed scheme. Figure 10 illustrates the BER variation with γ_b at N_{e peak} = 1×10¹⁸ m^-3, and figure 11 depicts the BER variation with N_{e peak} at γ_b=8 dB, where protographs with different R_c and L are used; σ_max=0.1 and A_θ =0°. The BERs decrease significantly with increasing γ_b and increase rapidly with increasing N_{e peak}. This is because with a decrease in γ_b or an increase in N_{e peak}, the relative intensity of the received signal decreases, which consequently increases the BER rapidly. Moreover, with decreasing R_c or increasing L, considerable code gain occurs and brings a significant reduction in the BER. When a protograph with R_c=5/6 and L=528 switches to a protograph with R_c=1/2 and L=4224, the γ_b required to reduce the BER to 10^-5 is lowered from 7.8 dB to 4.3 dB, and the N_{e peak} tolerance limit increases to 8.4×10¹⁸ m^-3 from 1×10¹⁸ m^-3 for the same target.

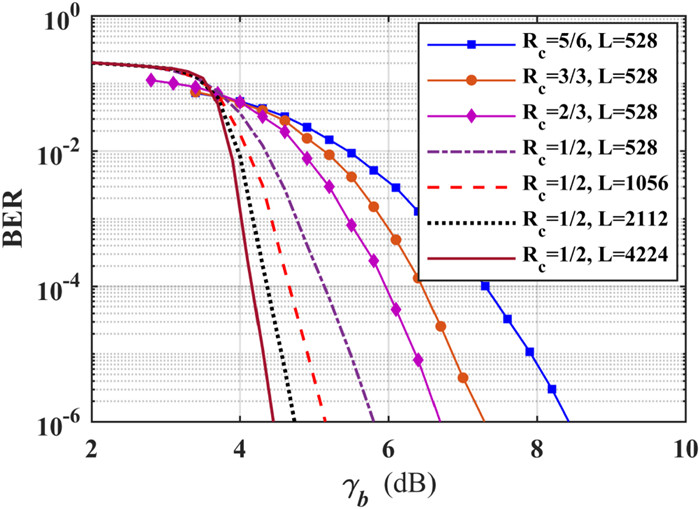

Figure  10.  BER versus γ_b, protographs with different R_c and L, N_{e peak} = 1×10¹⁸ m^-3, A_θ =0°, and σ_max=0.1.

DownLoad: Full-Size Img PowerPoint

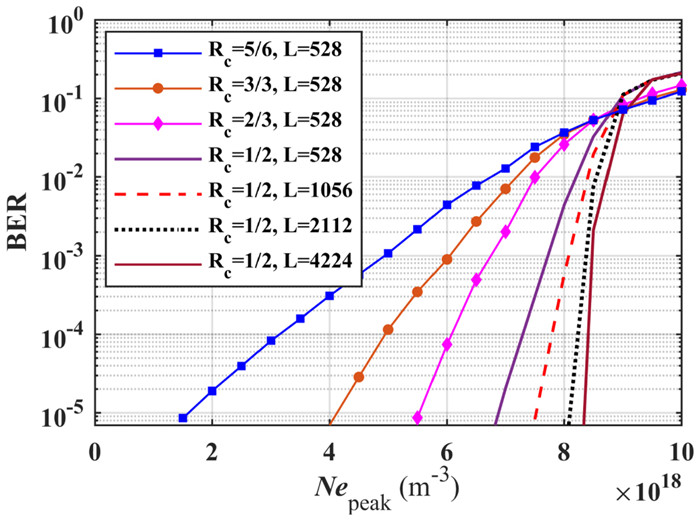

Figure  11.  BER versus N_{e peak}, protographs with different R_c and L, γ_b=8 dB, A_θ =0°, and σ_max=0.1.

DownLoad: Full-Size Img PowerPoint

If N_{e peak} continues to increase or γ_b continues to decrease, our adaptive BICM-ID method with a lower R_c or longer L can be adopted to maintain the data link.

5.   Conclusions

In this work, we conceive an adaptive P-BICM-ID system based on the RJ-MCMC algorithm for the problem of amplitude fading and phase shift caused by the PS channel. This scheme couples demodulation and decoding by combining protograph LDPC iterative decoding and the BICM-ID framework to make a soft decision over the PS channel, where the phase PDF is adaptively estimated by the RJ-MCMC algorithm and then soft information is calculated. Protograph LDPC codes with high coding gain and low encoding complexity are used to design the coding scheme. Compared to the existing algorithms, our adaptive P-BICM-ID system has a steep-waterfall performance, obtains a greater than 5 dB performance improvement at 10^-6 BER, and can cope with a worse plasma sheath environment. Simulation results show that even in the worst case for the plasma sheath during the reentry process, i.e. N_{e peak}, A_θ, and σ_max reach 1×10¹⁹ m^-3, 4°, and 0.1, respectively, the proposed adaptive P-BICM-ID system with an acceptable γ_b can ensure reliable communication. In addition, protographs with lower R_c or longer L can be used to further improve the system performance.
