SOLPS-ITER drift modeling of neon impurity seeded plasmas in EAST with favorable and unfavorable toroidal magnetic field direction

1.   Introduction

In the high-power operation of modern tokamaks, e.g. EAST [1] and ITER [2] etc, a large amount of power crossing the separatrix from core plasma to the scrape-off layer (SOL) [3] must be dissipated before reaching the divertor plates to avoid excessive erosion of target material. Seeding impurities into the divertor region for increasing radiative power loss is a promising approach to realize semi-detached/detached operation regimes [4] needed for heat load [5] alleviation in the long-pulse high-power operation of tokamaks. Particularly, in future fusion devices with full-metal walls (e.g. ITER), extrinsically seeded impurities are indispensable for heat flux control at the divertor plates. How to reduce divertor heat load most effectively with a minimal contamination to core plasma remains still a great challenge for current and next-generation tokamaks. Hence, it is essential to have a profound understanding of the impurity seeded plasmas in diverted tokamaks, including the understanding of divertor detachment, asymmetry and divertor retention of impurities.

E × B and diamagnetic drifts are found to play an important part in tokamak edge. Particularly, effects of E × B drift on impurity transport [6] as well as on divertor detachment [7] and asymmetry [8] are considered to be remarkable. Typical drift-flow patterns for the both directions of toroidal magnetic field (B_T) have been shown in figure 1. From figure 1, in plasmas with favorable B_T direction (i.e. with the ion B × ∇B drift pointing downwards for plasmas with lower-single null (LSN) configuration), both E_r × B and E_θ × B drifts tend to drive plasma ions from the outer divertor region to the inner one through the private flux region (PFR), making plasma in the inner divertor region to be more dense and colder than that in the outer one. Usually, inverting of B_T from the favorable direction to the unfavorable one leads to the reduction or even the reversing of in-out asymmetry [3]. However, the actual drift-flow patterns in tokamak edge have been demonstrated to be much more complicated than that shown in figure 1. In DIII-D, it is found that, for favorable B_T, the onset of divertor detachment exhibits a bifurcated feature due to the non-linear dependence of E × B drift on the electron temperature (T_e) and the electric potential ($\varphi$) [7]. Recent investigations in TCV revealed that, in detached plasmas with unfavorable B_T, an electric potential well [9] forms near the X-point, under the circumstance that Pfirsch–Schl$\ddot{u}$ter currents dominate the parallel current [3], leading to the deviation of divertor E × B drift flow from the classical pattern shown in figure 1. This deserves close attention for advanced tokamak scenarios, e.g. reverse triangularity plasmas, I-mode operation etc. In EAST, divertor detachment and asymmetry have been experimentally demonstrated to be significantly influenced by magnetic field direction [10], physics reason for which lies in the influences of E × B drift. However, to quantitatively describe the drift-driven processes in EAST, detailed modeling and analysis are still required.

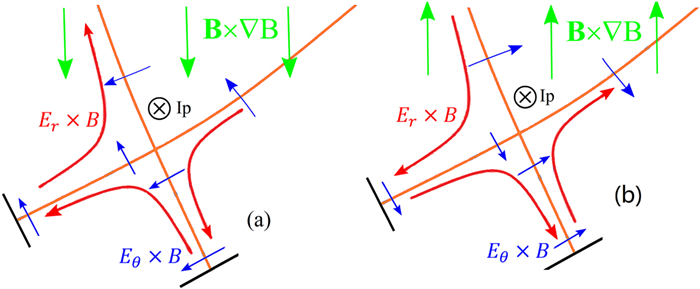

Figure  1.  Typical drift flow patterns of plasma ion in lower single null (LSN) configuration for favorable (a) and unfavorable (b) toroidal magnetic field direction.

DownLoad: Full-Size Img PowerPoint

Generally, various impurity species, such as Kr [11], nitrogen (N), neon (Ne) and argon (Ar) [12] can be seeded into divertor plasmas for power exhausting. However, so far, no conclusion on the best candidate impurity for future fusion reactors has yet been drawn. Presently, because of the lithium (Li) coating for daily wall conditioning and the strong chemical activity of N₂ and Li, seeding N₂ into EAST is not allowed. Besides, recent experiments in EAST revealed that neon is more compatible with the core plasma than argon in detached regimes [13]. Hence, this paper will focus on divertor detachment and asymmetry affected by drifts and neon seeding level in EAST with favorable/unfavorable B_T, by performing numerical simulations with the comprehensive SOLPS-ITER code [14, 15]. Besides, first study on neon impurity transport in divertor/SOL region of EAST with favorable/unfavorable B_T will also be addressed in this paper. A detailed reproduction of any particular experimental discharge is not attempted, but the simulations are aimed to provide a further understanding of present experimental observations. This paper is organized as follows. Section 2 introduces details about the simulation setups. Then, section 3 describes the simulation results and discussions. Finally, section 4 gives the conclusions.

2.   Modeling setup

As mentioned above, the simulation work has been fulfilled by SOLPS-ITER [14, 15], coupling the three-dimensional kinetic neutral transport code EIRENE [16] and the two-dimensional multi-fluid plasma solver B2.5 [17]. The effects of drifts and currents are self-consistently considered. Neon impurity has been injected into the divertor region from dome, as shown in figure 2(a). Behaviors of the electron, deuterium ion (D⁺) and neon ions (Ne¹⁺, Ne²⁺, …, Ne¹⁰⁺) are treated by the multi-fluid B2.5 code, solving the Braginsky set of equations [18]. Transport of neutrals (i.e. D₂, D, Ne) as well as the sources/sinks of energy, particle and energy due to the molecular/atomic processes (e.g. ionization, recombination, charge-exchange, etc) is tackled by EIRENE based on the background plasma conditions provided by B2.5. Since the molecular ion ${\mathrm{D}}_2^{+}$ has a very short life-span and can be easily recombined into a molecule (i.e. D₂), it is also treated by EIRENE.

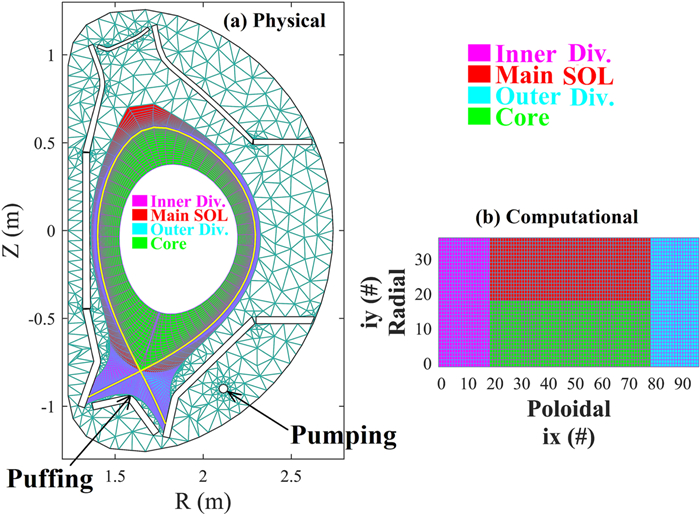

Figure  2.  (a) Meshes for B2.5 (i.e. the quasi-orthogonal meshes poloidally aligned along the flux surfaces) and for EIRENE (triangular). The in-vessel structures as well as the pumping and puffing locations are also shown, (b) the computational meshes for B2.5.

DownLoad: Full-Size Img PowerPoint

SOLPS-ITER calculations are performed based on the grid shown in figure 2, which has been generated from a typical magnetic equilibrium (with the elongation $\kappa =1.674,$ upper/lower triangularity ${\delta }_{\mathrm{u}}/{\delta }_{\mathrm{l}}=0.288/0.560,$$q_{95}=5.0$) in EAST with LSN configuration. Calculation grid shown in figure 2(a) consists of the quasi-orthogonal (96 poloidal × 36 radial) meshes, poloidally aligned along the flux surface, for B2.5 and the triangular meshes for EIRENE. At the outboard midplane (OMP), B2.5 meshes radially extend from −10.0 cm (outer core) to ~3.0 cm (SOL). Besides, to facilitate the analysis, the computational meshes (figure 2(b)) together with definitions of the calculation regions (including the 'core', the main SOL and both divertors) are also depicted in figure 2. Based on typical plasma conditions in EAST, the plasma current (I_p) and toroidal magnetic field (B_T) are set to be I_p = 400 kA and B_T = 1.8 T, respectively. Basically, plasma conditions at the boundaries of divertor targets, PFR, outer SOL and the core-edge interface (CEI) require to be given for SOLPS-ITER calculations. In our simulations, plasma boundary conditions are set as follows: (1) at the CEI, density of D⁺ is fixed to n_u = 3.0 × 10¹⁹ m⁻³, the particle fluxes of neon (Ne¹⁺, Ne²⁺, …, Ne¹⁰⁺) are set to be zero. Since the neutral deuterium (D⁰) and neutral neon (Ne⁰) species are treated by EIRENE, boundary conditions for them on the B2.5 side are unimportant. On the EIRENE side, the CEI is assumed to absorb all the neutrals impinging from the outer side. Besides, the electron and ion temperatures are specified to be T_e = T_i = 500 eV, thus heat flux into the calculation region through CEI is ~1 MW; (2) boundary condition at the last SOL flux surface is assumed to be leakage type, similar to that shown in [19]; (3) the standard sheath boundary condition is used at the divertor targets; the plasma flow is assumed to be at least sonic at entrance of sheath, i.e. $n\frac{B_{\theta }}{B}{V}_{\Vert }=n\frac{B_{\theta }}{B}{c}_{\mathrm{s}}.$ Here, $V_{\Vert },$$B_{\theta }$/B and n denote the parallel flow velocity, magnetic field (poloidal/total) and plasma density, respectively. Since the drifts are included in the calculations, boundary conditions at the targets are revised as: $n\left(\frac{B_{\theta }}{B}{V}_{\Vert }+V_{\mathrm{p}}\right)=n\frac{B_{\theta }}{B}{c}_{\mathrm{s}},$ where V_p represents the poloidal projection of total drift velocities [8]. At the surfaces of plasma facing components, the recycling coefficient (R_coef) is specified as follows. R_coef for divertor plates and that for the main chamber are set to be 1.0. For the pumping hole with a surface area of 2.087 m² (figure 2(a)), R_coef is specified to be 0.9152, so that the pumping speed is about 76 ${\mathrm{m}}^3·{\mathrm{s}}^{-1}$ which is close to typical pumping capability of the cryopump in EAST [20, 21].

The perpendicular transport coefficients are set to be spatially constant over the entire calculation region with the particle diffusivity $D_{\perp }=0.3{\mathrm{m}}^2·{\mathrm{s}}^{-1},$ the electron and ion heat diffusivities ${\chi }_{\mathrm{e}}={\chi }_{\mathrm{i}}=1.0{\mathrm{m}}^2·{\mathrm{s}}^{-1}.$ Flux limits [3] are applied for classical fluxes, details can be found in [19]. The neon impurity puffing rate ${\mathrm{\Gamma }}_{\mathrm{puff}}$ has been scanned from $5.0\times {10}^{19}{\mathrm{s}}^{-1}$ to the maximum one ${\mathrm{\Gamma }}_{\mathrm{puff}}^{\max }$ at which the radiation collapse will not be induced. That is, when neon puffing rate has been increased to be larger than ${\mathrm{\Gamma }}_{\mathrm{puff}}^{\max },$ the radiation collapse will be caused so that no converged solutions can be given. In the simulations, ${\mathrm{\Gamma }}_{\mathrm{puff}}^{\max }$ for the favorable/unfavorable B_T is found to be $1.2\times {10}^{20}{\mathrm{s}}^{-1}$/$1.0\times {10}^{20}{\mathrm{s}}^{-1}.$ No deuterium puffing is applied.

3.   Simulations results

3.1   Electrostatic potential and field

E × B drift has been considered to greatly affect divertor detachment and asymmetry [22, 23], and significantly influence divertor retention/leakage of impurities [6]. To profoundly understand the drift flow patterns in EAST with both B_T directions, distribution of electric potential () in the calculation region should be correctly described. Recent investigations [7, 9, 24] demonstrated that electric potential distribution is tightly connected to divertor operation regimes (e.g. high-recycling, detachment etc) and to magnetic-field direction. According to [9, 24], in attached regimes with high divertor plasma temperature (T_e) (i.e. ), the Spitzer resistivity () is so small that parallel current () has a little contribution to parallel electric field (); while in detached plasmas with low divertor T_e, the Spitzer resistivity is significant so that contributes much to Besides, in detached plasmas with favorable/unfavorable B_T, the dominant contribution of to will lead to the formation of electric potential hill/well near the X-point [7, 9], under the circumstance that the local charge balance in divertor is contributed predominantly by and diamagnetic current ($\tilde{j}_{\mathrm{dia}}$). The X-point potential well and hill may greatly affect the divertor plasma performances. Hence, main characteristics of the electric potential () distribution calculated in the simulations are analyzed and shown in the following part.

Typical distributions of the electrostatic potential () in favorable and unfavorable B_T at different neon seeding rates are shown in figure 3. From figure 3, similar to results from SOLPS-ITER drift modeling of edge plasmas in TCV [9], divertor electric potential () profile for favorable B_T follows the classical picture [3], i.e. with the radial electric field (E_r) directed away from the separatrix and the parallel electric field () towards the target plates (figures 3(a) and (b)); while for unfavorable B_T, the so-called X-point potential well [9], which reverses the electric field near the X-point, emerges in detached regimes at high neon seeding rates. Hence, based on the above-mentioned theories and the distribution of electric potential shown in figure 3, we can infer that $\tilde{j}_{\mathrm{dia}}$ dominates charge balance in the divertor region of EAST, which is the same case as those on DIII-D [7, 25], AUG [24], COMPASS [26]. This can be further demonstrated by data in table 1, which illustrates the calculated contributions to the divergence of electric current in both divertors for favorable and unfavorable B_T at relatively high neon puffing rate (). The influence of X-point potential well on plasma and impurity transport in EAST will be described in section 3.3.

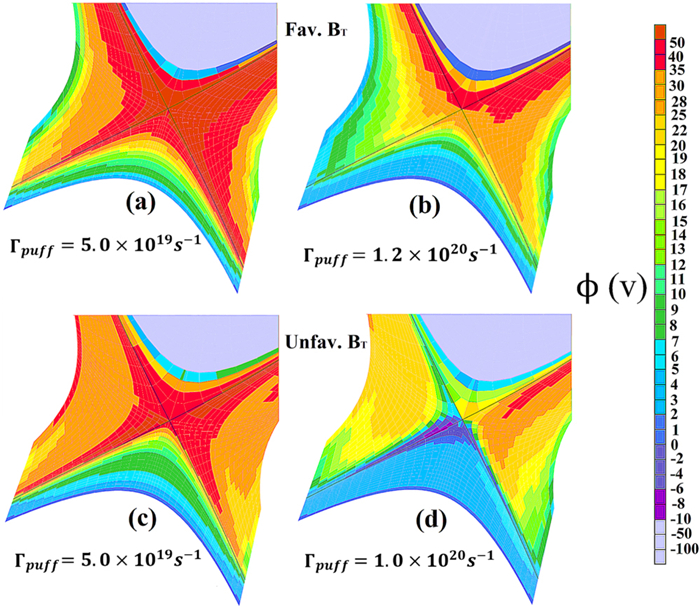

Figure  3.  SOLPS-ITER calculated distributions of electric potential ($\varphi$) in the divertor region for favorable ((a) and (b)) and unfavorable B_T ((c) and (d)) at different neon seeding rates.

DownLoad: Full-Size Img PowerPoint

Table  1.  SOLPS-ITER calculated contributions to the divergence of electric current in both divertors for ${\mathit{\Gamma }}_{\mathrm{puff}}^{\mathrm{fav}.}=1.2\times {10}^{20}{\mathrm{s}}^{-1}$ and ${\mathit{\Gamma }}_{\mathrm{puff}}^{\mathrm{unfav}.}=1.0\times {10}^{20}{\mathrm{s}}^{-1}.$ The charge balance is dominated by parallel and diamagnetic currents.

Charge balance contribution (A)	Favorable BT			Unfavorable BT
	Inner divertor	Outer divertor		Inner divertor	Outer divertor
$\int_V\left|\nabla \cdot \boldsymbol{j}_{\|}\right| \mathrm{d} V$	275.0	162.9		181.9	166.4
$\int_V\left|\nabla \cdot \boldsymbol{j}_{{\rm{dia}}}\right| \mathrm{d} V$	203.8	128.9		148.8	131.7
$\int_V\left|\nabla \cdot \boldsymbol{j}_{{\rm{inert}}}\right| \mathrm{d} V$	69.1	19.4		40.6	17.7
$\int_V\left|\nabla \cdot \boldsymbol{j}_{{\rm{ion-neut}}}\right| \mathrm{d} V$	6.9	5.7		3.9	11.1
$\int_V\left|\nabla \cdot \boldsymbol{j}_{{\rm{vis}}-\|}\right| \mathrm{d} V$	8.6	22.3		6.3	14.2
$\int_V\left|\nabla \cdot \boldsymbol{j}_{{\rm{anm}}}\right| \mathrm{d} V$	5.4	6.5		5.4	6.6
$\int_V\left|\nabla \cdot \boldsymbol{j}_{\text {vis }-\perp}\right| \mathrm{d} V$	15.4	36.1		5.7	30.9

 | Show Table

DownLoad: CSV

Similar to results from simulations with SOLPS5.2 [17, 27] and SOLPS-ITER [28] for present tokamaks [17] and for ITER [27, 28], radial electric field (E_r) in the outer core is found to be close to its neoclassical value, as shown in figure 4. According to equation (42) in [17], neoclassical value of E_r depends on the parallel velocity ($V_{\Vert }$), radial density ($\partial n/\partial r$) and temperature ($\partial T/\partial r$) gradients. In our simulations, as B_T direction reverses, the radial temperature gradient ($\partial T/\partial r$) (see figure 3 in [19]) and the magnitude of $V_{\Vert }$ in the outer core changes slightly. Thus, contribution of $\partial T/\partial r$ and that of $V_{\Vert }$ to neoclassical value of E_r are insensitive to B_T direction. Consequently, compared with the favorable B_T cases, the unfavorable B_T cases tend to have smaller E_r in the outer core (figure 4(a)) because of the smaller neoclassical contribution related to the radial gradient of plasma density (figure 4(b)). That is, radial density profiles in favorable B_T tend to be steeper than those in unfavorable B_T, in accordance with results from the previous experiments [29] and simulations [19] on EAST. Besides, for unfavorable B_T, in the far SOL (of > 1 cm radial distance to separatrix), E_r value is very small (figure 4(a)), implying a small poloidal ion flux driven by E_r × B, compared with that in the near SOL, details about which will be describe in section 3.3.

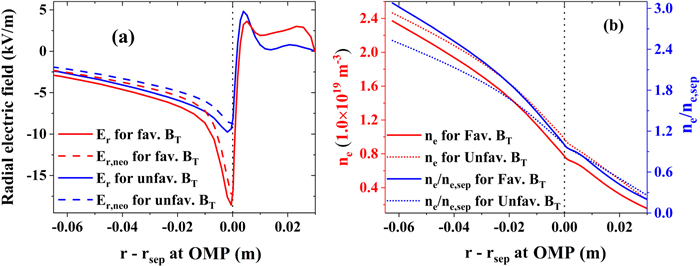

Figure  4.  Radial profiles of electric-field (a) and n_e (b) at the outboard midplane (OMP) in favorable/unfavorable B_T at ${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}.$ For a better comparison of n_e radial gradient, OMP n_e values for favorable B_T together with those for unfavorable B_T are normalized to the corresponding separatrix plasma density n_{e, sep} and are also shown in figure 4(b) (in blue).

DownLoad: Full-Size Img PowerPoint

3.2   Drift effects on divertor detachment and asymmetry

Figure 5 depicts the calculated radial profiles of plasma density (n_e) and temperature (T_e) at the targets and outer midplane (OMP) for favorable/unfavorable B_T at different neon puffing rates (${\mathrm{\Gamma }}_{\mathrm{puff}}$). From figure 5, we can see that, in favorable B_T, there exists a remarkable in-out asymmetry in target n_e and T_e, while in unfavorable B_T the divertor asymmetry is reversed and the magnitude of which has been suppressed to some degree, in common with results from previous investigations [30]. To elucidate the effects of drifts and neon seeding on divertor detachment and asymmetry, peak values of T_e and heat fluxes (q_t) together with the strike-point values of T_e at both divertor plates are plotted versus the neon seeding rate for the favorable and unfavorable B_T (figure 6). Basically, with T_e$\lesssim$ 5 eV [4, 31], transition of divertor operation from the attached regime to detached one will be induced by the energy loss, momentum loss and particle loss (manifested as roll-over of target ion current due to the reduction of sources (ionization) and/or the increase of sinks (recombination) [31, 32]) processes. Hence, $T_{\mathrm{e}}\lesssim 5\mathrm{eV}$ is taken as the criterion for detachment judgment in this work.

Figure  5.  SOLPS-ITER calculated radial profiles of n_e and T_e at the mid-plane and targets for favorable (solid lines) and unfavorable B_T (dash lines) at different neon puffing rates.

DownLoad: Full-Size Img PowerPoint

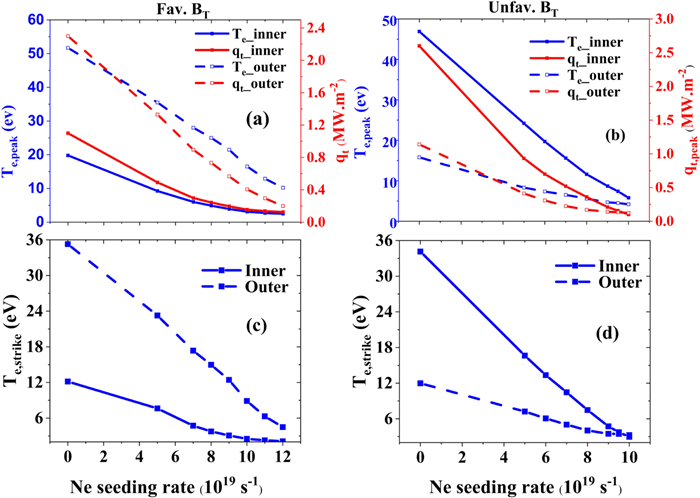

Figure  6.  Peak values of plasma temperature (T_e) and heat flux (q_t) ((a) and (b)) together with the strike-point values of T_e ((c) and (d)) at both divertor targets plotted versus the neon seeding rate for favorable ((a), (c)) and unfavorable ((b), (d)) B_T.

DownLoad: Full-Size Img PowerPoint

From figures 5 and 6, T_e and q_t at both divertor plates decrease as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases, in both favorable and unfavorable B_T. However, values of T_e and q_t in the colder divertor region tends to be more insensitive to the increase of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ than those in the hotter divertor region. In favorable B_T, with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased from 0 to 1.2 × 10²⁰ ${\mathrm{s}}^{-1},$ peak value of T_e at the inner/outer target plate has been decreased from 19.8/51.7 to 2.5/10.2 eV, and the strike-point value of T_e at the inner/outer divertor plate has decreased from 12.1/35.3 to 2.1/4.4 eV. In unfavorable B_T, with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased from 0 to 1.0 × 10²⁰ ${\mathrm{s}}^{-1},$ peak value of T_e at the inner/outer target plate has been decreased from 46.9/15.8 to 5.8/4.2 eV, and the strike-point value of T_e at the inner/outer divertor plate has been decreased from 34.1/11.9 to 2.9/3.2 eV. Hence, in unfavorable B_T, the in-out asymmetry of divertor plasma conditions can be remarkably reduced, as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases.

In favorable B_T, with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be 7.0 × 10¹⁹ ${\mathrm{s}}^{-1},$ the strike-point value of T_e at the inner plate has been decreased to be $<5\mathrm{eV}$ (~4.7 eV), so that the inner divertor plate becomes to be partially detached near the strike-point, and the degree of detachment from the inner plate increases as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases, as can be further demonstrated by the decrease (roll-over) of total ion flux (figure 7(a)). As for the plasmas in the outer divertor region, only when ${\mathrm{\Gamma }}_{\mathrm{puff}}$ has been increased to be as high as 1.2 × 10²⁰ ${\mathrm{s}}^{-1},$ the strike-point T_e value can be decreased to be $<5\mathrm{eV}$ (~4.5 eV), and the degree of detachment cannot be further increased by increasing ${\mathrm{\Gamma }}_{\mathrm{puff}},$ due to the occurrence of radiation collapse. Hence, in accordance with the previous experimental observation [10], the onset of detachment is highly asymmetric between inner and outer divertors in EAST with favorable B_T.

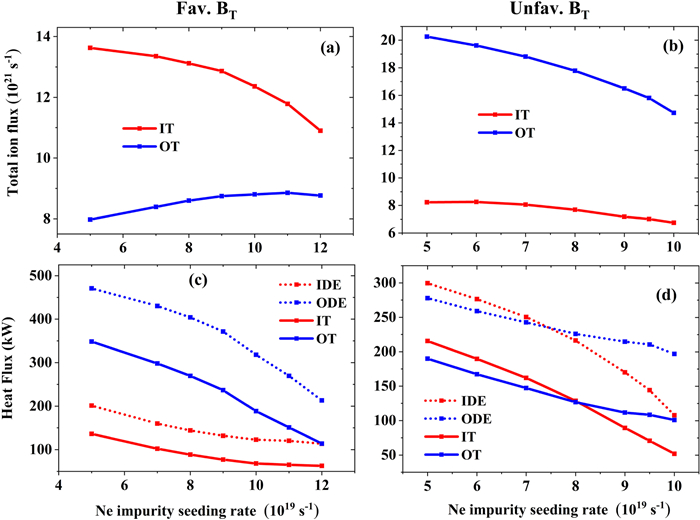

Figure  7.  (a) and (b): total ion flux onto the inner (red) and outer (blue) target plates plotted against ${\mathrm{\Gamma }}_{\mathrm{puff}}$ for favorable- (a) and unfavorable-B_T (b); (c) and (d): integrated heat flow into the inner divertor region via the inner divertor entrance (IDE) (red dotted-lines) and that into the outer divertor region via the outer divertor entrance (ODE) (blue dotted-lines) together with the integrated power heat load on the inner (red solid-lines) and outer (blue solid-lines) divertor target plates plotted against ${\mathrm{\Gamma }}_{\mathrm{puff}}$ for favorable- (c) and unfavorable-B_T (d).

DownLoad: Full-Size Img PowerPoint

In unfavorable B_T, with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be larger than 7.0 × 10¹⁹ ${\mathrm{s}}^{-1},$ strike-point value of T_e at the outer divertor plate can be decreased to be $\lesssim 5\mathrm{eV},$ leading to the partial detachment of plasmas in the outer divertor region. As ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases further, T_e values in the outer divertor region change slightly (figures 5(f) and 6(b)). In contrast, with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ further increased to be 9.0 × 10¹⁹ ${\mathrm{s}}^{-1},$ the inboard strike-point T_e value decreases to be $<5\mathrm{eV}$ (~4.7 eV), and T_e in the inner divertor region decreases more dramatically than that in the outer divertor region. Hence, in-out asymmetry in neon-seeding-level required for the onset of divertor detachment in unfavorable B_T is much smaller than that in favorable B_T. To elucidate physics reasons for divertor detachment and asymmetry observed in both the simulations and experiments for EAST, target flux of neon impurity, power flow into the divertor region and the distribution of radiative power loss have been analyzed.

In coronal equilibrium, power radiated by neon (P_{rad, z}) can be expressed as [33]:

Here, n_z, L_z and n_e are the neon density, radiation efficiency and electron density, respectively. The radiation efficiency L_z can be inferred from atomic databases [34]. However, it is notable that deviation from coronal equilibrium occurs in both experiments [11] and SOLPS-ITER simulations [35]. Hence, equation (1) is just an approximation of radiative power loss in this work. Figure 8 gives the calculated radiative power loss (P_rad) in different regions, including the core, SOL, inner and outer divertors. From figure 8, P_rad in core and in SOL tend to be higher than that in the divertor region, for which there are two possible reasons. On one hand, according to previous simulations on radiation characteristics of impurity species in EAST [36], the maximum of radiation efficiency L_z for neon tends to appear in the upstream around the separatrix. On the other hand, neon was experimentally observed to tend to leak towards the upstream in some tokamaks, such as ASDEX-upgrade [37] and DIII-D [38], leading to large core radiation. Drift effects on divertor leakage/retention of neon impurity in EAST with both B_T directions will be addressed in section 3.3.

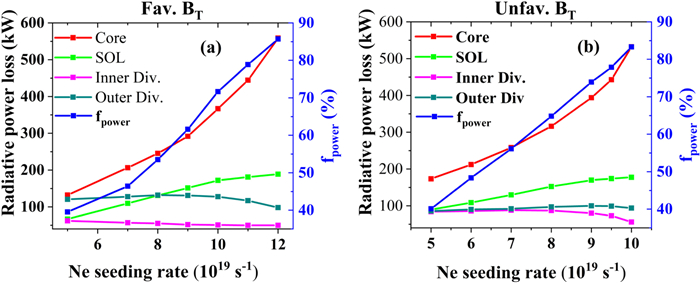

Figure  8.  Total radiative power loss in different regions, including that in core, main SOL, inner divertor region and outer divertor region, plotted against ${\mathrm{\Gamma }}_{\mathrm{puff}}$ for favorable (a) and unfavorable (b) B_T. Ratio of radiation power to power flux into the calculation region via the core-edge interface (P_CEI ranging from ~0.96 to ~1.03 MW during neon seeding rate scan), i.e. f_power, has also been plotted (in blue) versus ${\mathrm{\Gamma }}_{\mathrm{puff}}$ for favorable (a) and unfavorable (b) B_T.

DownLoad: Full-Size Img PowerPoint

As expected, power flow into both divertors can be decreased via increasing ${\mathrm{\Gamma }}_{\mathrm{puff}}$ (figures 7(c) and (d)), due to the increase of P_{rad, z} in core and main SOL (i.e. SOL excluding divertor region) (figure 8). Although, the increase of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ will lead to the increase of divertor neon density n_z, P_{rad, z} in the divertor region cannot be increased effectively (figure 8), due to the strong temperature dependence of the radiation efficiency L_z [35]. Hence, in our simulations, as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases, decrease of power heat load on divertor plates and the transition of the divertor operation regime from the attached to detached one are mainly caused by the decrease of power flow into the divertor region.

In favorable B_T cases, total power flow from the upstream to the outer divertor region (P_OD) via the outer divertor entrance (ODE) is found to be more than twice as much as that to the inner divertor region (P_ID) via the inner divertor entrance (IDE) (figure 7(c)). Hence, in spite of the relatively low radiative power loss (P_rad) (figure 8(a)), due to the low plasma temperature in the inner divertor region, the inner divertor plate is much more easily to be detached than the outer one, which is in consistency with the previous experimental observations in EAST [9]. Besides, P_ID is found to be more insensitive to the increase of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ than P_OD, which will be explained in the following by analyzing the poloidal and radial heat transport in the upstream.

In unfavorable B_T at relatively low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ (${\mathrm{\Gamma }}_{\mathrm{puff}}\le 7.0\times {10}^{19}{\mathrm{s}}^{-1}$), P_ID is larger than but close to P_OD (figure 7(d)). As ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases, P_ID decreases more rapidly than P_OD and even becomes to be less than P_OD. As described above, radiative power loss P_rad depends on plasma temperature as well as on plasma and impurity density. At relatively low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ (${\mathrm{\Gamma }}_{\mathrm{puff}}\le 7.0\times {10}^{19}{\mathrm{s}}^{-1}$), the more dense and colder outer divertor region has a similar level of P_rad as the less dense and hotter inner one (figure 8(b)), and thus the outer target plate is more easily to be partially detached near the strike-point as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases (figure 6). As ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases further, the rapid decrease of P_ID will lead to the detachment of the inner divertor plate (figure 6), even if P_rad in the inner divertor region tends to be slightly decreased (figure 8(b)). Hence, as mentioned above, total power heat entering into the divertor region (P_Div) is key to the divertor detachment and asymmetry observed in our simulations. At this point, what is the physics reason behind the main characteristics of power flow into divertor region in EAST with favorable/unfavorable B_T at different ${\mathrm{\Gamma }}_{\mathrm{puff}}$ is still an unresolved issue. For this, particle/heat transport properties, in the calculation region, have been analyzed and will be introduced in the following part.

Anomalous electron/ion heat diffusion, heat flow associated with anomalous electron/ion diffusion and drifts are the main contributions to heat flows in SOLPS simulations (see equation (32) in [17]). Figure 9 shows the calculated components of the radial ((a), (b)) heat flow and those of the poloidal ((c), (d)) heat flow, in the main SOL. From figure 9, apart from the anomalous (electron/ion) heat diffusivity, drift, which is magnetic-field-direction dependent, also contributes significantly to total heat flow in the SOL. Hence, for a further understanding of the above introduced characteristics of heat flows from the upstream into the divertor region, heat transport by ions due to drift and Pfirsch–Schl$\ddot{\mathrm{u}}$ter (P–S) [3] convection has been analyzed and will be introduced in the following part.

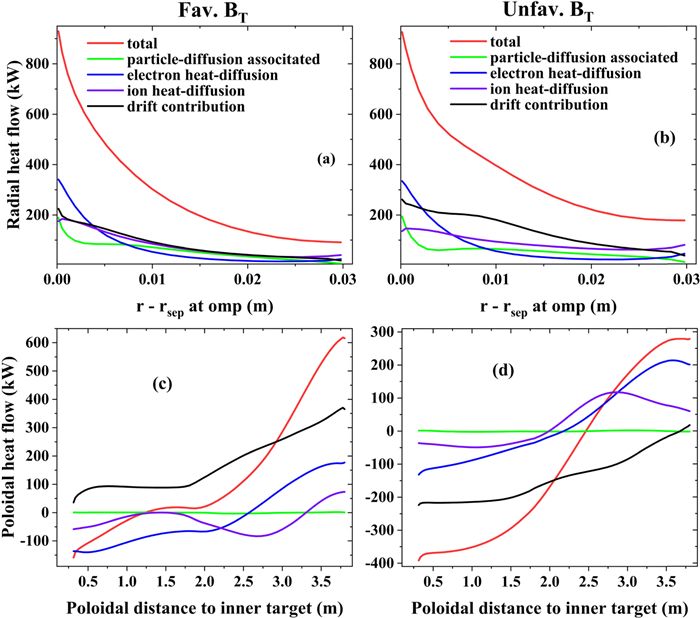

Figure  9.  Components of the radial (poloidally integrated along flux surface) ((a) and (b)) and poloidal (radially integrated) ((c) and (d)) heat flows in the main SOL for favorable ((a), (c)) and unfavorable ((b), (d)) B_T at ${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}.$ Positive flow values in panels (a) and (b) represent the outward radial flow, and positive flows in panels (c) and (d) are towards the outer divertor region.

DownLoad: Full-Size Img PowerPoint

For plasmas with the LSN configuration in favorable B_T, the magnetic drifts (i.e. vertical ∇B and curvature drifts) [3] drive ion carrying power heat from core to SOL through the bottom of the flux surface (figure 10). In the magnetic equilibrium used for this work (figure 2(a)), the component of magnetic drifts, directing across flux surfaces, in the lower outer quadrant is larger than that in the lower inner quadrant [39], due to the relatively large lower-triangularity (δ_l = 0.560). Hence, cross-separatrix ion and heat flux from core to SOL through the lower outer quadrant of the flux surfaces is much larger than that through the lower inner quadrant of the flux surfaces (figure 12(a)), which can be a good explanation for the observation that heat flux from the upstream SOL into the outer divertor region (P_OD) is much larger than that into the inner divertor (P_ID). A part of the cross-separatrix ion/heat flow from the bottom goes back to the top through the P–S path [3], but the rest flows towards the divertor target. Both the inboard and outboard P–S flows, closing the magnetic drift flow, are disrupted by plasma particle flows moving towards the targets to provide recycling, leading to the appearance of up-down asymmetry in plasma pressure (P_tot), as manifested by the drop of P_tot at the top compared with that at IMP/OMP. In the SOL region below OMP, particles move from core to SOL, mainly driven by magnetic drifts, and finally arrive at outer plate. Above OMP, particle flow follows the classical P–S pattern, i.e. those core-to-SOL particles in the lower-outer quadrant go back to the upper-outer quadrant and move into core again. Plasma ion flow in the high field side (HFS) follows a mechanism analogous to that in the low field side (LFS).

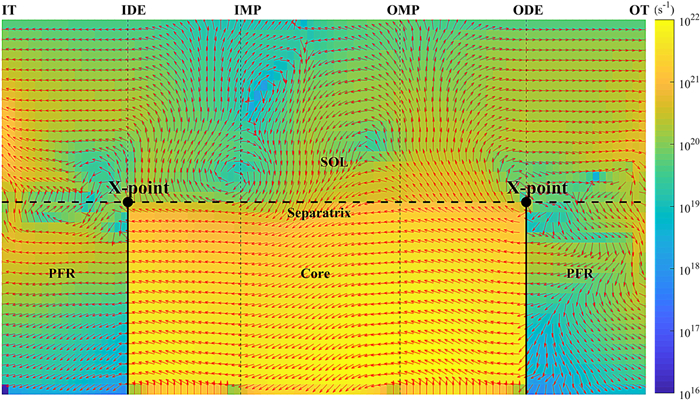

Figure  10.  Main ion (D⁺) flux in the calculation region for the favorable B_T case at ${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}$ plotted in the numerical grid for SOLPS-ITER. From left to right, vertical lines denote locations of inner divertor entrance (IDE), inboard midplane (IMP), outboard midplane (OMP) and the outer divertor entrance (ODE). Positions of the inner and outer targets (IT and OT) are also shown.

DownLoad: Full-Size Img PowerPoint

Further increase of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ during detachment will make the power entering into divertor region to be insufficient for ionization. Besides, energy required for per ionization event rises during detachment, as plasma in the divertor region gets colder and more excitation collisions occur before ionization [32]. Hence, the roll-over of total target ion flux occurs further into detachment (figures 7(a) and (b)), due to the reduction of divertor ion source. In our simulations, volumetric recombination, which can be an effective ion sink in adequate divertor plasma conditions (T_e < 1 eV and n_e > 10²⁰ ${\mathrm{m}}^{-3}$ [32]), remains small further into detachment process. According to [31, 32], target pressure (P_t) loss is required for the roll-over of target ion current. In TCV [32], P_t reduction is found to be driven by both the volumetric momentum loss [3, 31] and the reduction of upstream pressure (P_u), and the latter is considered to be crucial for understanding detachment. In our simulations, P_u reduction also occurs during detachment (figure 12). Since the inner target plate is much easier to be detached, P_u reduction at the HFS is found to be larger than that at the LFS. This in-out asymmetry of plasma pressure loss along the flux surface tends to drive a convective poloidal SOL heat flow from the LFS towards HFS (figure 12(c)), compensating the neon caused power radiative loss at the HFS. Hence, during detachment as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases further, power flow from upstream into the inner divertor region (P_ID) tends to be insensitive to the increase of ${\mathrm{\Gamma }}_{\mathrm{puff}};$ while that into the outer divertor region (P_OD) decreases rapidly (figure 7(c)). Physics reasons for P_u reduction during detachment have been explored in previous analytic and modeling studies [40–42]. To profoundly understand P_u reduction and its influence on core plasma performances during detachment in EAST, deliberately designed experiments and integrated core-edge modeling will be performed in future.

As for plasmas with LSN configuration in unfavorable B_T, magnetic drifts drive plasma ions carrying power from core to SOL through the top of the surfaces (figure 11). Some of the core-to-SOL plasma ions carrying power heat returns to core again through the separatrix at bottom of flux surface, which tends to decrease power flow into the divertor region; while some transports from the top to divertor target. From figure 11, which illustrates the main ion particle flux in the calculation region for plasmas with unfavorable B_T at relatively low level of ${\mathrm{\Gamma }}_{\mathrm{puff}}$$\left({\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}\right),$ the radial ion flux from SOL to core at the LFS tends to be larger than that at the HFS. That is, fraction of power heat carried by particles returning to core at the LFS is larger than that at the HFS. Hence, heat flux into the inner divertor is larger than that into the outer one. Similar to that in favorable B_T, as divertor plasma enters into detachment, upstream pressure (P_u) loss will be caused. P_u reduction increases with further cooling of divertor plasma. Besides, P_u reduction in the colder plasma region at the LFS is larger than that in the hotter plasma region at the HFS. This in-out asymmetry in P_u reduction drives a convective SOL heat flux from the HFS to LFS along the flux surface (figure 12(d)), compensating the power radiative loss by neon at the LFS. Hence, heat flux into the outer divertor region is much insensitive to the increase of ${\mathrm{\Gamma }}_{\mathrm{puff}},$ while heat flux into the inner divertor decreases rapidly as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases (figure 7(d)). Consequently, the required neon seeding rate for the onset of divertor detachment at the HFS is larger than but close to that at the LFS. The SOL heat flow, emerging due to in-out asymmetry in P_u reduction, is found to be critical for understanding detachment and asymmetry observed in EAST.

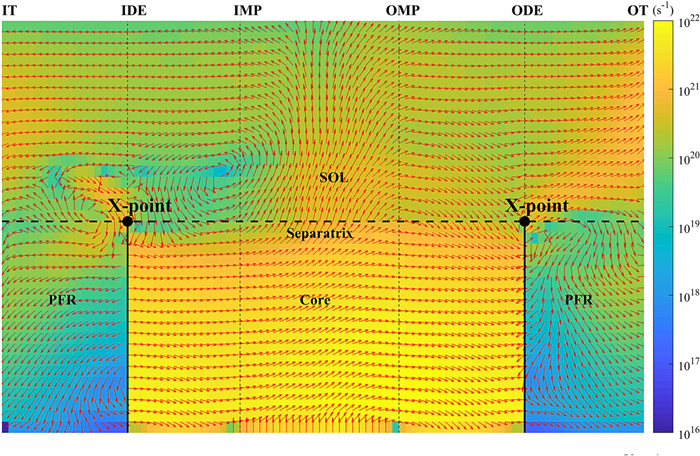

Figure  11.  Similar to figure 10 but for the unfavorable B_T case at ${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}.$

DownLoad: Full-Size Img PowerPoint

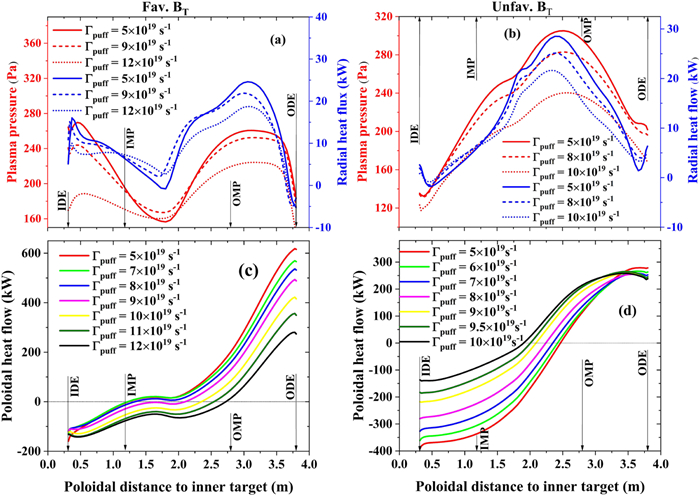

Figure  12.  Poloidal profiles of plasma pressure (P) and radial heat flow along the SOL flux tube of ~2 mm radial distance to the separatrix at OMP, for favorable (a) and unfavorable (b) B_T at different ${\mathrm{\Gamma }}_{\mathrm{puff}},$ together with the radially-integrated poloidal SOL heat-flow for favorable (c) and unfavorable (d) B_T at different ${\mathrm{\Gamma }}_{\mathrm{puff}}.$ Positive flow values in panels (a) and (b) represent the outward radial flow, and positive flows in panels (c) and (d) are poloidally directed towards outer divertor region.

DownLoad: Full-Size Img PowerPoint

3.3   Neon impurity transport

As described above, neon seeding tends to give drastic radiative power loss in the core and SOL, one reason for which may lie in the divertor leakage/retention of neon impurity. Hence, this section will focus on neon impurity transport in the divertor/SOL. Recent investigation on impurity transport revealed that the leakage efficiency of impurity from the divertor region of a tokamak is determined by the relative locations of impurity ionization source from neutrals and the stagnation-point for the poloidal velocity of impurity (u_{pol, imp}) [6]. It is found that u_{pol, imp} can be estimated by adding the poloidal E × B drift velocity to the poloidal projection of parallel impurity velocity (i.e. $\left(B_{\theta }/B\right).$ u_{‖, imp}), and the latter can be calculated based on the impurity force-balance equations in the parallel direction [3, 6]. Apart from providing the difference between the poloidal projection of u_{‖, imp} (i.e. $\left(B_{\theta }/B\right).$ u_{‖, imp}) and u_{pol, imp}, drifts can also contribute to u_{pol, imp} via affecting the parallel main ion (D⁺) velocity $\left(u_{\Vert ,\mathrm{D}}\right),$ since u_{‖, imp} depends on $u_{\Vert ,\mathrm{D}}$ via parallel projection of impurity force balance. Besides, $u_{\Vert ,\mathrm{D}}$ is tightly connected to the direction of toroidal magnetic field (B_T) (equally to the direction of P–S flow). To investigate drift effects on neon impurity transport in the divertor/SOL of EAST with favorable/unfavorable B_T, main characteristics of neon ionization source from neutrals and of neon particle flux pattern have been analyzed.

It is known that, for noble gas (e.g. Ne and Ar), the main source in plasma is not gas puff but the recycling at walls, mainly at the divertor targets [34]. From figure 13(b), total number of neon atoms (Ne⁰) (i.e. $N_{{\mathrm{Ne}}^0}$) in the divertor region increases as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases. The divertor strength of neon ionization source from neutrals ($S_{{\mathrm{Ne}}^{+}}$) (i.e. $S_{{\mathrm{Ne}}^{+},\mathrm{ID}}+S_{{\mathrm{Ne}}^{+},\mathrm{OD}},$$S_{{\mathrm{Ne}}^{+},\mathrm{ID}}$/$S_{{\mathrm{Ne}}^{+},\mathrm{OD}}$ denoting the strength of neon ionization source from neutral state in the inner/outer divertor region) for unfavorable B_T is found to be stronger than that for favorable B_T (figure 13(a)). As a result, with all the other parameters of simulation kept the same, the unfavorable B_T cases tend to have a larger radiative power loss than the favorable B_T cases (figure 8). Hence, in our simulations, the tolerable level of ${\mathrm{\Gamma }}_{\mathrm{puff}},$ i.e. the largest level of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ at which the radiation collapse of plasmas will not be caused, for unfavorable B_T (${\mathrm{\Gamma }}_{\mathrm{puff}}^{\mathrm{Unfav}.}=1.0\times {10}^{20}{\mathrm{s}}^{-1}$) is smaller than that for favorable B_T (${\mathrm{\Gamma }}_{\mathrm{puff}}^{\mathrm{Fav}.}=1.2\times {10}^{20}{\mathrm{s}}^{-1}$). Leakage of neon impurity ions from the divertor region after the ionization will be addressed in the following part.

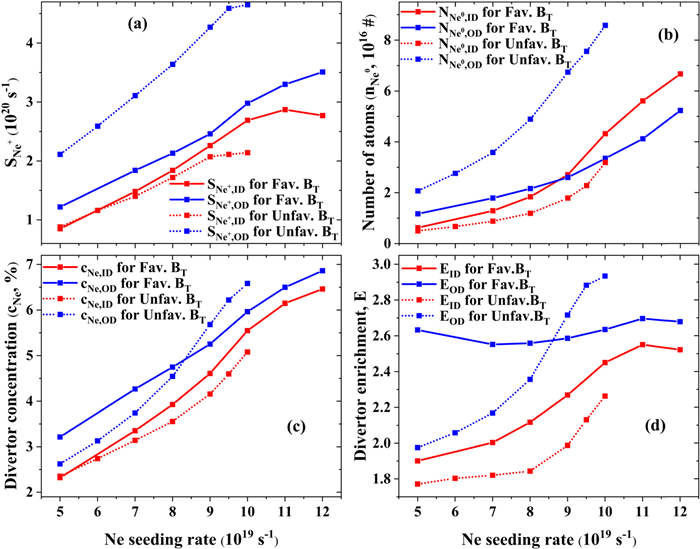

Figure  13.  Total neon ionization source (in ${\mathrm{s}}^{-1}$) from atoms S_Ne⁺ (a) and number of neon atoms $N_{{\mathrm{Ne}}^0}$ (b), neon impurity concentration ($c_{\mathrm{Ne}}$) (c) and neon enrichment $c_{\mathrm{Ne},\mathrm{div}}/c_{\mathrm{Ne},\mathrm{core}}$ (d) in the in the inner divertor (in red) and the outer one (in blue) for favorable (solid lines) and unfavorable (dotted lines) B_T, plotted against the neon seeding level.

DownLoad: Full-Size Img PowerPoint

(a) Divertor leakage/retention of neon for favorable B_T

Firstly, the favorable B_T cases will be focused on. Figure 14 shows the typical SOL neon ion-flux-pattern in favorable B_T at relatively low and high levels of neon seeding rate (${\mathrm{\Gamma }}_{\mathrm{puff}}$). From figure 14, when ${\mathrm{\Gamma }}_{\mathrm{puff}}$ is relatively low (${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}$), stagnation-point for poloidal neon ion velocity (u_{pol, Ne}) at the HFS is located quite near the inner target, especially for the near SOL, which may provide the neon ions with a high opportunity to leak from the inner divertor region; while at the LFS, most of the SOL region has no stagnation point of poloidal neon ion velocity, and thus neon ions can only leak from the outer divertor through the X-point. With ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be relatively high (${\mathrm{\Gamma }}_{\mathrm{puff}}=1.2\times {10}^{20}{\mathrm{s}}^{-1}$), the stagnation point of u_{pol, Ne} at the HFS shifts away from the target to the upstream evidently; while at the LFS the stagnation point of u_{pol, Ne} seems to be very insensitive to the level of ${\text{Γ}}_{\mathrm{puff}}.$ To investigate the detailed influence of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ and drifts on neon impurity leakage/retention in both divertors, poloidal profile of u_{pol, Ne} and that of $S_{{\mathrm{Ne}}^{+}}$ are plotted in figure 15.

Figure  14.  Typical SOL flow pattern of neon ion flux (summed over all the charge states) in favorable B_T at relatively low (${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}$) (a) and high (${\mathrm{\Gamma }}_{\mathrm{puff}}=1.2\times {10}^{20}{\mathrm{s}}^{-1}$) (b) levels of neon seeding rate.

DownLoad: Full-Size Img PowerPoint

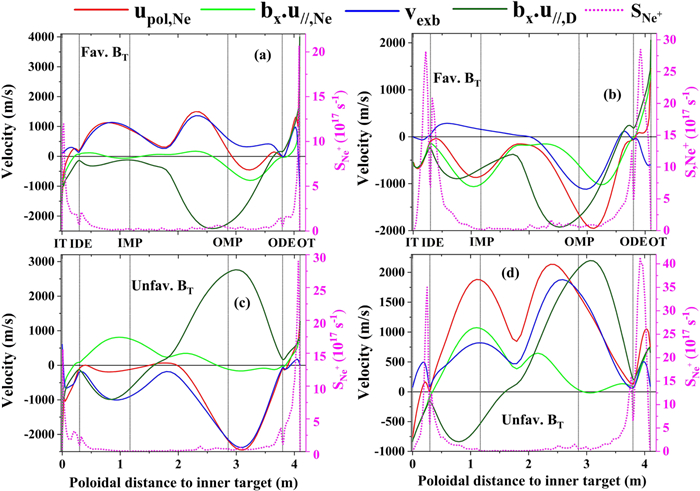

Figure  15.  Poloidal neon ion velocity u_{pol, Ne}, poloidal projection of parallel velocity for neon and deuterium (b_x·u_{‖, Ne} and b_x·u_{‖, D}, $b_x=B_{\theta }/B$) poloidal E × B drift velocity, and the strength of neon ionization source (in ${\mathrm{s}}^{-1}$) from atoms in the near SOL (on the flux tube of ~2 mm radial distance to separatrix at OMP) for favorable ((a) and (b)) and unfavorable ((c) and (d)) B_T at relatively low (${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}$) ((a), (c)) and high ((b), (d)) neon puffing rate. For favorable/favorable B_T, the high seeding rate is set to be $1.2\times {10}^{20}/1.0\times {10}^{20}$${\mathrm{s}}^{-1}.$ The parallel velocity for neon is averaged over all charge states (density-weighted), by referring to [6]. Positive value of velocity means that the velocity is directed towards the outer target.

DownLoad: Full-Size Img PowerPoint

From figure 15, we can see that, in accordance with that in [6], the poloidal neon velocity u_{pol, Ne} can be approximately calculated by adding the poloidal projection of parallel velocity for neon $\left(u_{\Vert ,\mathrm{Ne}}.B_{\theta }/B\right)$ to the poloidal E × B drift velocity (v_{pol, exb}, common for all ions). The E × B drift contributes much to u_{pol, Ne}, especially in the main SOL of plasmas at relatively low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}}.$ From the comparison between figures 15(a) and (b), with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be relatively high (${\mathrm{\Gamma }}_{\mathrm{puff}}=1.2\times {10}^{20}{\mathrm{s}}^{-1}$), contribution of poloidal E × B drift ($v_{\mathrm{pol},\mathrm{exb}}=E_r/B,$ [3]) to u_{pol, Ne} seems to be decreased due to the decrease of radial temperature gradient (figure 5) on which E_r depends. The parallel neon ion velocity $u_{\Vert ,\mathrm{Ne}}$ is calculated based on the parallel force balance equation and averaged over all the charge states (density-weighted), by referring to [6]. In all the simulation cases, thermal force (F_th) approximately balances friction force (F_fr), i.e. $F_{\mathrm{th}}\approx -F_{\mathrm{fr}},$ (figure 16), and thus the other terms (e.g. the pressure gradient, inertia and electric forces) are less important.

Figure  16.  Parallel friction (F_fr) and thermal (F_th) forces exerted on per neon ion (averaged over all charge states) plotted along a flux tube of ~2 mm radial distance to the separatrix at the OMP, for favorable (a) and unfavorable (b) B_T at relatively low and high neon seeding.

DownLoad: Full-Size Img PowerPoint

According to [33, 43, 44], the difference between $u_{\Vert ,\mathrm{D}}$ and $u_{\Vert ,\mathrm{Ne}}$ is given by:

Here, $c_{\mathrm{fr}}$ is the friction coefficient, $c_{\mathrm{fr}}\propto n_{\mathrm{D}}/T^{3/2}$ (n_D is the main ion (deuterium) density). Therefore, the ratio of thermal force and friction coefficient compensates the background plasma flow at the position of stagnation-point for $u_{\Vert ,\mathrm{Ne}}$ (i.e. $u_{\Vert ,\mathrm{Ne}}=0$):

Basically, F_th shifts the position of stagnation point for $u_{\Vert ,\mathrm{Ne}}$ towards the divertor plate and thus tends to decrease the retention of impurity ions in divertor region. With $F_{\mathrm{th}}\propto \mathrm{\nabla }T,$ one obtains

From equation (4), the increase of plasma density and the decrease of temperature, caused by neon seeding, reduce the effect of thermal force due to the reduction of $\frac{F_{\mathrm{fr}}}{c_{\mathrm{fr}}},$ moving the stagnation point for impurity towards the that for plasma ion and further away from the target.

However, as described above, with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased from relatively low to high, position of stagnation-point for poloidal neon velocity u_{pol, Ne} moves from the divertor region towards the upstream at the HFS, but remains to be almost unchanged at the LFS (figures 14 and 15(a) and (b)). The insensitivity of neon impurity stagnation-point to the level of neon seeding rate at the LFS can be explained as follows. From figures 15(a) and (b), when ${\mathrm{\Gamma }}_{\mathrm{puff}}$ is relatively low, poloidal E × B drift in most of the outer divertor region is directed towards the outer target, and thus shifts the position of stagnation point for poloidal neon velocity u_{pol, Ne} away from the target; while when ${\mathrm{\Gamma }}_{\mathrm{puff}}$ is increased to be relatively high, the poloidal E × B drift in the outer divertor region is directed away from the outer target, which shifts the position of stagnation-point for u_{pol, Ne} towards the outer target. That is, at the LFS, the decreased effects of thermal force caused by the increase of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ seems to be compensated by the effect of poloidal E × B drift. The reversing of poloidal E × B drift, equally the reversing of E_r, in the near SOL at the LFS is caused by the significant reduction of temperature near the separatrix, as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases (figure 5).

From figure 15(a) for relatively low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}},$ although the strong ionization front is located quite near the inner target, strength of neon ionization source above the position of stagnation-point for poloidal neon velocity is also significant. Consequently, a large portion of neon ions moves upstream after the ionization. The consequent remarkable leakage of neon from the inner divertor can be one of the main reasons for the high radiation power in the core and SOL (figure 8). In contrast, at the LFS, most of the neon atoms are ionized below the position of stagnation-point for poloidal neon velocity, and thus only a small portion of neon ions leak from the outer divertor through the X-point after the ionization. Besides, E × B drift velocity makes the biggest contribution to the poloidal neon velocity u_{pol, Ne} in the most of main SOL, driving the neon impurity ions from the inner divertor towards the outer one through the SOL (figure 14) and compensating the E × B drift driven neon ion flux from the outer divertor region towards the inner one through PFR. In our simulations, the order of magnitude for the integrated neon flux from the outer divertor to inner one through the PFR (figure 17) is found to be the same as that for the integrated strength of neon ionization source from atoms (figure 13(a)), but can be largely compensated by the outer-target directed ion flow (mainly driven by E × B drift) through the SOL, at relatively low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}}.$ Hence, it is found that, in our simulation cases with favorable B_T at low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}},$ the inboard divertor-enrichment of neon ions E_Ne, defined as the ratio of the averaged divertor neon concentration $c_{\mathrm{Ne}}$ to the averaged core neon concentration $c_{\mathrm{Ne},\mathrm{core}}$$\left(E_{\mathrm{Ne}}=\frac{c_{\mathrm{Ne},\mathrm{div}}}{c_{\mathrm{Ne},\mathrm{core}}}\right)$ [34], is larger than the outboard E_Ne (figure 13(d)), due to the larger outboard ionization source and smaller outboard neon impurity leakage. Here, the averaged neon concentration in a region (e.g. inner/outer divertor, SOL, core) is defined as the ratio of the total number of neon particles in this region to the total number of electrons in the corresponding region.

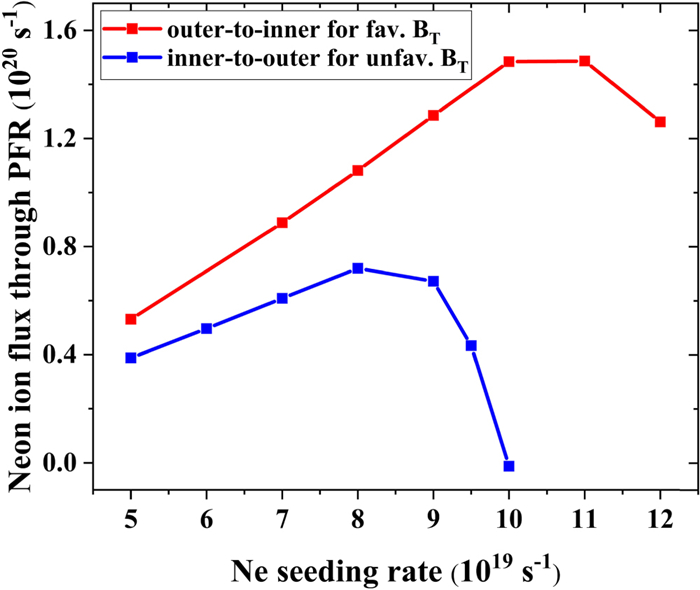

Figure  17.  Integrated neon ion flux from the outer to inner divertor through PFR for favorable B_T (in red) and that from the inner to outer divertor through PFR for unfavorable B_T cases (in blue) plotted versus the level of neon seeding rate.

DownLoad: Full-Size Img PowerPoint

As ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases, the inner divertor enters into detached regime and the degree of detachment will be increased, so that neon ionization source from neutrals will extends from the divertor region towards the upstream due to the high ionization potential (21.6 eV). From figure 15(b) for relatively high levels of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ (${\mathrm{\Gamma }}_{\mathrm{puff}}=1.2\times {10}^{20}{\mathrm{s}}^{-1}$), a large fraction of neon atom ionization occurs above the inner divertor entrance due to the significant cooling of inner divertor. However, as described above, position of stagnation point for poloidal neon velocity u_{pol, Ne} is quite sensitive to the level of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ and will be shifted towards upstream due to the decreased effect of thermal force ($F_{\mathrm{th}}/c_{\mathrm{fr}}$). Hence, proportion of neon neutrals ionized above the stagnation-point for u_{pol, Ne}, equally the divertor leakage of neon, in the HFS can be greatly reduced as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases. Consequently, neon enrichment in the inner divertor region increases as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increases (figure 13(d)). Since, the outer divertor region remains to be attached in all the favorable B_T cases at different ${\mathrm{\Gamma }}_{\mathrm{puff}},$ most of the neon ionization source from neutrals (S_Ne⁺ ) is located in the divertor region. Besides, as introduced above, the stagnation point of u_{pol, Ne} is quite insensitive to the level of ${\mathrm{\Gamma }}_{\mathrm{puff}}$ and far from the outer target. As a result, neon enrichment in the outer divertor seems to be very insensitive to neon seeding rate (figure 13(d)).

(b) Divertor leakage/retention of neon for unfavorable B_T

Figure 18 depicts the SOL neon-ion-flux in unfavorable B_T at relatively low and high levels of ${\mathrm{\Gamma }}_{\mathrm{puff}}.$ From figure 18, when ${\mathrm{\Gamma }}_{\mathrm{puff}}$ is relatively low (${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}$), the stagnation point of u_{pol, Ne} in the near SOL can be located inside both the inner and outer divertor regions, due to the combined effects of thermal force (see the difference between u_{‖, D} and u_{‖, Ne} in figure 15(c)) and E × B drift. With ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be as high as $1.0\times {10}^{20}{\mathrm{s}}^{-1},$ the position of stagnation point for u_{pol, Ne} in some of the near SOL will be shifted away from the inner target, but for the region quite near the separatrix the position of stagnation point for u_{pol, Ne} is still quite near the inner target. In contrast, position of the stagnation point for u_{pol, Ne} at the LFS is shifted away from the outer target. In the far SOL, due to the fact that effect of thermal force ($\frac{F_{\mathrm{fr}}}{c_{\mathrm{fr}}}\propto \frac{T^{3/2}·\mathrm{\nabla }T}{n_{\mathrm{D}}}$) is decreased and that poloidal E × B drift ($v_{\mathrm{pol},\mathrm{exb}}=\frac{E_r}{B}$) is very small (small value of E_r in the far SOL for unfavorable B_T can be found in in figure 4(a)), flow pattern of neon particle flux is quite similar to that of deuterium particle flux. This can be demonstrated by the comparison between figures 11 and 18. Hence, some of neon particles leaked from the divertor through the near SOL return from the top to the divertor region again through the far SOL.

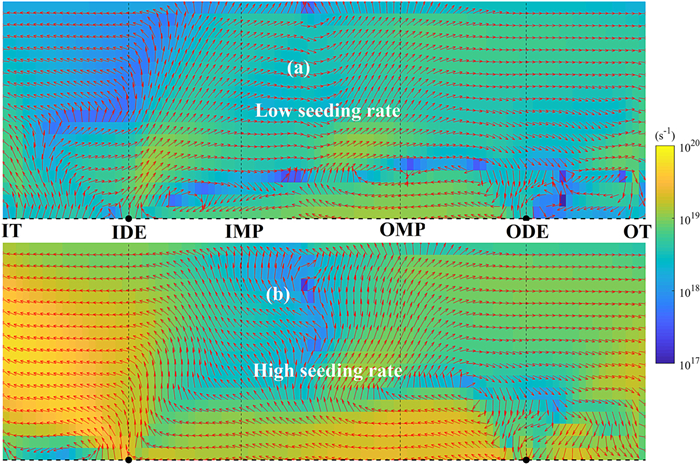

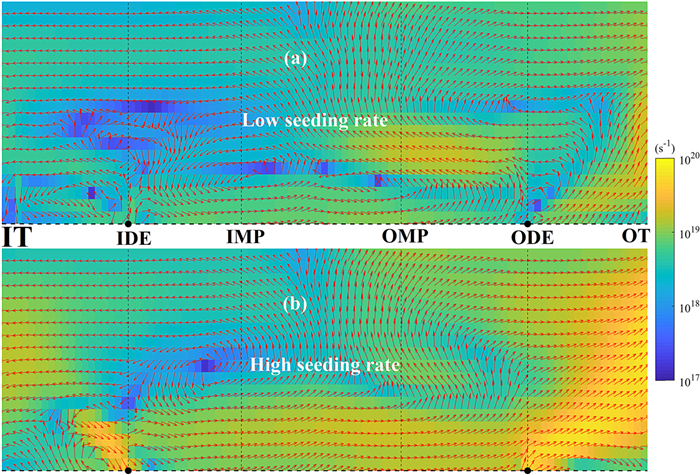

Figure  18.  Similar to figure 14, but for unfavorable B_T at relatively low (${\mathrm{\Gamma }}_{\mathrm{puff}}=5.0\times {10}^{19}{\mathrm{s}}^{-1}$) (a) and high (${\mathrm{\Gamma }}_{\mathrm{puff}}=1.0\times {10}^{20}{\mathrm{s}}^{-1}$) (b) levels of neon seeding rate.

DownLoad: Full-Size Img PowerPoint

From figure 15(c), in plasmas with unfavorable B_T at relatively low levels of ${\mathrm{\Gamma }}_{\mathrm{puff}},$ neon ionization source from neutrals at the LFS and that at the HFS are concentrated in the divertor region near the target, so that the leakage of neon ions from the divertors only occurs in the near SOL with the stagnation point of u_{pol, Ne} being located quite near the target. Neon ion flux returning from the top to the outer divertor, through the far SOL, tends to be larger than that to the inner divertor. The integrated poloidal neon ion flux from the inner divertor to the outer one through the PFR (figure 17) is much less than the integrated neon ionization from atoms (figure 13(a)). Hence, the inboard neon diverter enrichment tends to be larger than the outboard neon divertor enrichment, mainly due to the much stronger outboard neon ionization source (figure 13).

From figure 18(b), with ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be as high as $1.0\times {10}^{20}{\mathrm{s}}^{-1},$ at the HFS, the shift of neon ionization source front away from the target leads to a strong leakage of neon ions from the inner divertor through X-point (figure 18(b), since the ionization source front, there, is located further from the inner target than the position of stagnation-point for poloidal neon velocity, in the region near the separatrix. In contrast, at the LFS, the neon ionization source from neutrals is concentrated in the outer divertor region and the stagnation point of u_{pol, Ne} is shifted out of the divertor region, so that most of the neon ions after ionization will be entrained in the outer divertor region. Integrated neon flux from the inner divertor region to the outer one through the PFR becomes to be almost negligible as ${\mathrm{\Gamma }}_{\mathrm{puff}}$ increased to be relatively high (figure 17), due to the reversing of E × B drift flux in the near PFR (with respected to radial distance to separatrix) (figure 19). However, the significant decrease of target plasma temperature near the separatrix tends to invert the radial electric field from the outwards to inwards directions (figures 15(c) and (d)), which drives a strong neon ion flux from the inner divertor region to the outer one in the near SOL (figure 18(b)). Besides, the strength of neon ionization source in the outer divertor region is much stronger than that in the inner one (figure 13(a)). Consequently, concentration/enrichment of neon impurity in the outer divertor region tends to be larger than that in the inner one (figure 13(d)).

Figure  19.  Similar to figures 10 and 11, but for the unfavorable B_T case at ${\mathrm{\Gamma }}_{\mathrm{puff}}=1.0\times {10}^{20}{\mathrm{s}}^{-1}.$

DownLoad: Full-Size Img PowerPoint

As described in section 3.1, in plasmas with unfavorable B_T at ${\mathrm{\Gamma }}_{\mathrm{puff}}=1.0\times {10}^{20}{\mathrm{s}}^{-1},$ the so-called X-point electric potential well will be formed. Figure 19 shows the deuterium ion flux plotted in the computational meshes for unfavorable B_T at this level of ${\mathrm{\Gamma }}_{\mathrm{puff}}.$ From the comparison between figures 19 and 11, the formation of X-point potential well reverses both the poloidal and radial $\mathit{E}\times \mathit{B}$ drift flows in the near PFR and near SOL at both the LFS and HFS, due to the reversing of electric field (E) near the X-point. Hence, similar to that in [8], the potential well tends to compress/widen radial density profile in inner/outer divertor, which can be demonstrated by comparison between the radial width of target density profile for favorable B_T (blue solid lines in figures 5(b) and (c)) and that of target density profile for unfavorable B_T (blue dotted lines in figures 5(b) and (c)), at relatively high level of neon seeding. Details about the influence of X-point potential well on radial and poloidal particle transport in the divertor region can be found in [8].

4.   Conclusions

Seeding impurities into divertor region for achieving semi-detached/detached regimes has been considered as an essential tool to control heat loads on the plates at a tolerable level, in the high-power operation of both the current and future tokamaks, such as EAST and ITER. To improve the compatibility of detached divertor operation with high performance core plasmas, a profound understanding of impurity-seeded plasmas is indispensable. Hence, the comprehensive SOLPS-ITER code has been used to numerically investigate drift effects on divertor detachment and asymmetry and on impurity transport in EAST during neon seeding with favorable and unfavorable toroidal magnetic field directions (B_T).

Firstly, distribution of electrostatic potential and field has been analyzed, to make sure that they are correctly described and to better understand the drift-driven processes. Results demonstrate that divertor/SOL electric potential profile for favorable B_T follows the classical picture, i.e. the parallel electric field directing towards the target plates and the radial electric field away from the separatrix; while for unfavorable B_T, the so-called X-point potential well, which reverses the electric field in the divertor region near the X-point, forms at high neon seeding rates. In consistency with results in [8], the electric potential well emerges in deeply detached plasmas, with Pfirsch–Schl$\ddot{u}$ter currents contributing predominately to the parallel current, and tends to compress/widen radial density profile in the inner/outer divertor. The radial electric field (E_r) in the confinement region of EAST is found to be close to its neoclassical value, which is similar to that for ITER [28] and for some other current tokamaks [17]. In the outer core, E_r for unfavorable B_T is smaller than that for favorable B_T, because of the smaller neoclassical contribution related to radial density gradient.

After that, the combined effects of neon seeding and drifts on divertor detachment and asymmetry are focused on. Results reveal that, in accordance with the experimental observations in EAST [10], for favorable B_T, detachment onset is highly asymmetric between the inner and outer divertors, i.e. the inner divertor is much more easily to be detached than the outer one. In-out asymmetry existed in the required neon puffing rate for the onset of divertor detachment for unfavorable B_T is much less than that for favorable B_T. Further analysis indicates that apart from the well-known E × B drift particle flow from one divertor region to the other through the PFR, plasma heat flow through the main SOL, particularly the total power into the divertor region from the upstream, is also a critical parameter affecting divertor detachment and asymmetry. The SOL heat flow is much more asymmetrically distributed between the HFS and LFS for favorable B_T than that for unfavorable B_T. During detachment, upstream pressure (P_u) reduction, which has also been experimentally observed in TCV [32] and COMPSS [45], occurs in the simulation. P_u reduction is more significant in the colder plasma side than that in the hotter one, and tends to drive a convective SOL heat flow from the hotter side towards to colder one. During detachment, the SOL heat flow, emerging due to the in-out asymmetry in P_u reduction, compensates the radiative power loss at the colder side, and thus power flow from the upstream towards the colder divertor becomes to be insensitive to neon seeding level while that towards the hotter divertor decreases rapidly. This can be a good explanation for the experimental observation that in unfavorable B_T the onset of divertor detachment between inner and outer divertor becomes to be nearly balanced.

To better understand the simulated result that power radiative loss during neon seeding tends to be drastic in the core and SOL, drift effects on neon impurity transport in the divertor/SOL of EAST with favorable/unfavorable B_T have been studied for the first time. Results indicate that position of the stagnation-point for poloidal neon ion velocity profile, as a key element determining neon leakage/retention in divertor, can be greatly affected by the P–S flow direction, E × B drift and by divertor operation regimes depending on neon seeding level. As a result, neon impurity leakage from divertor is found to be much sensitive to B_T direction and to neon impurity seeding level. The latter can also affect the neon ionization source distribution, which is another key factor determining neon divertor retention/leakage. E × B drift contributes a lot to poloidal neon impurity ion velocity, especially in the main SOL, and thus could not be canceled in simulations on impurity transport in EAST. In attached plasmas with relatively low seeding rate, the stagnation-point for neon poloidal velocity (u_{pol, Ne}) locates quite near the target plate so that a large fraction of neon neutrals can be ionized above it and then leak from the divertor region. As neon seeding rate increases, stagnation-point for poloidal neon velocity shifts towards the upstream, and the proportion of neon neutrals ionized above the stagnation point can be decreased, which is consistent with results in [6].

Although, modeling work described in this paper is not performed based on specific experiments, it can greatly facilitate the understanding of divertor detachment and asymmetry as well as impurity transport in EAST and can serve as a reference for future numeric simulations performed more closely related to experimental regimes.
